ADHB-4 Gen 2 Advanced Digital Headset Box
Enhance the flexibility of the system with ADHB-4 Gen 2
The ADHB-4 Gen 2 is the perfect companion to C-Soft. The ADHB-4 Gen 2 works with C-Soft and eliminates the variability of computer sound cards for both input and output. The ADHB-4 Gen 2 represents the second generation of this proven audio interface platform. All of things users have come to know and love about the ADHB-4, such as a variety of microphone, headset, and handset options, along with up to six audio outputs, NENA port, mounting options, etc. are there.
The unit sports a new display and front panel along with a back panel that has added a two channel auxiliary audio input via a 3.5mm stereo jack, which allows users to bring in other audio feeds, such as audio from a broadcast news channel.
Key features
- Ethernet Communication
- Six audio output channels
- Supports up to three pairs of amplified computer speakers
- Dual-channel 1/4" headset jack
- XLR connector to low-impedance microphone
- Desk mic jack
- Telephone handset jack
- Individual headset volume controls (via RHB-1)
- LED power and PTT indicator
- 12 VDC operation
- Two remote headset box (RHB-1) connections
- Programmable gain control
- Foot-switch inputs for PTT and monitor
- Two form-C relay outputs
- AUX inputs are Dc isolated
- Monochrome LCD display
- Telex System Manager supported for firmware and configuration
Specifications
| Width | 11.36" (288.54 mm) |
| Depth | 7.71" (195.83 mm) |
| Height | 2" (50.8 mm) |
| Power Requirements | +12Vdc to +16Vdc, semi-regulated, 1.25mA nominal at 12Vdc |
| Weight | 5.20lbs/2.36kg (unit); 7.19lbs/3.26kg (shipping weight) |
| Audio Distortion | 2% THD maximum |
| NENA Input/Output Impedance | 600 Ohms nominal |
| Relay Contact Ratings | 1A 125VAC—Form C Contacts |
| Ethernet Speed | 10/100BaseT |
| USB | Version 2.0 |
| Storage Temperature | 28.8°C to 48.8°C (-20°F to 120°F), 100% Non-Condensing |
| Operating Temperature | 0°C to 55°C (32°F to 131°F), 100% Non-Condensing |
| Frequency Response | ±1.5dB, 300 to 3000Hz |
Accessories

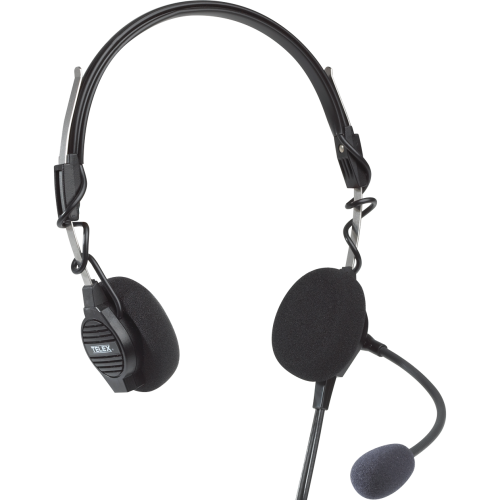

DH2200 Headsets
DUAL-SIDED RADIO DISPATCH HEADSET

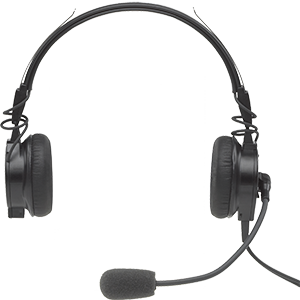

DH3200 Headsets
NOISE-CANCELING DUAL-SIDED RADIO DISPATCH HEADSET

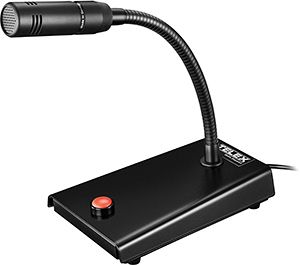

DT-GN-18 Microphones
DESKTOP GOOSENECK MICROPHONE

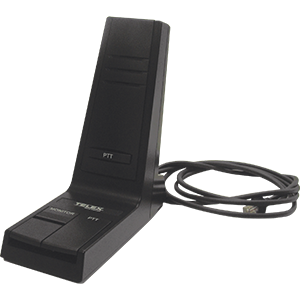

MD-MS Microphones
OMNIDIRECTIONAL ELECTRET MICROPHONE

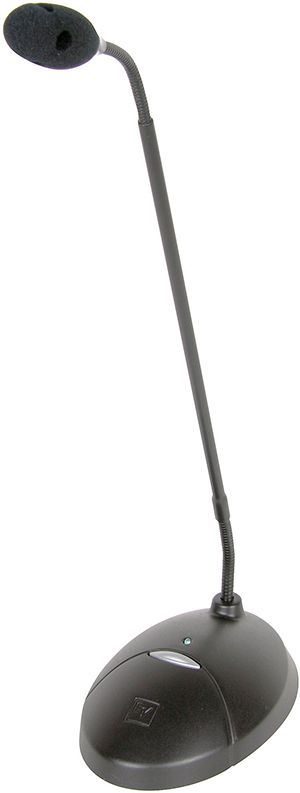

PC DESKTOP-18RD Microphones
POLARCHOICE 18" MICROPHONE

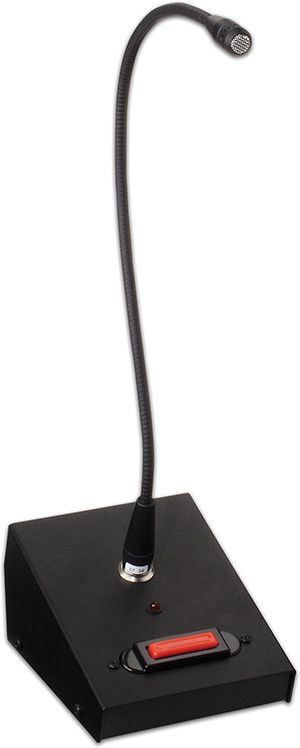

PREMDESKMIC Microphones
PREMIUM DESKTOP MICROPHONE
