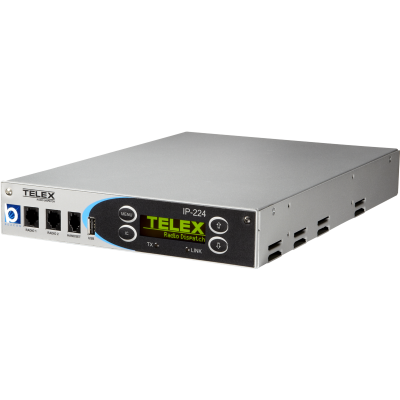

IP-224 Radio Gateway
DUAL IP REMOTE ADAPTER PANEL

Based upon the Linux operating system, the IP-224 provides an extremely reliable means of remote-controlling two audio devices. The IP-224 can be easily configured to work with both digital and analog consoles, and it performs a wide variety of other tasks related to using radios on a digital network, including state-of-the-art system diagnostics.

The IP-224’s sleek design combines form with function, allowing easy installation, operation, and servicing. The unit may be rack-mounted or placed directly on a desktop, and it is equipped with an LCD display to clearly provide user feedback when programming. VU meters are also provided via the display for alignment purposes. All other configurations are completed in the web browser configuration windows. The IP-224 is backward compatible, allowing the use of IP-224 and IP223 adapters in the same system. This will allow a migration to the new products when desired.

How to buy Share this page Subscribe to newsletter

Product info

Key features

Available in both standard and advanced interface configurations
Field upgradeable to advanced interface
Local/Tone/Console modes, Line-Line- Crosspatch
PTT, monitor, F1 and F2 relays (programmable to any function tone or revert to F1)
Four PTT modes and three monitor modes
Nine selectable PTT frequencies in Tone Mode
Eight digital outputs for channel selection, completely programmable per function tone
CTCSS generation (64 frequencies)
Software gain control
Local handset port for monitoring activity and transmission back to base or to radio, uses optional AHS-1 handset
RX AGC, RX audio squelch

Dual Ethernet ports and support for SNMP
ANI over-the-air-protocol decode and display
SoIP (Serial-over-Internet-Protocol)
Supports USB, RS485, CAN-bus, RS232, TTL
Backwards compatible with Telex Radio Dispatch equipment
Web browser based setup and configuration
Single or dual function tone generation
Guard tone User-selectable for 2100 Hz, 2175 Hz, 2300 Hz, 2325 Hz, 2400 Hz, 2600 Hz, 2800 Hz, 2850 Hz, or 2900 Hz
Menu driven front panel controls for TX, RX, spare audio, IP addressing, and CTCSS
Handles channels or talk groups up to 1,000
MDC-1200 and Fleetsync encode and decode
Telex System Manager supported for firmware and configuration

Specifications

Control Type	32-bit Digital Media Processor
Width	8.5" (215.9 mm)
Depth	11.5" (292.1 mm)
Height	1.625" (41.3 mm)
Power Requirements	+11Vdc to +16Vdc, 600mA nominal at 12Vdc
Vocoders	Telex 32K (50 kbits/sec simplex), G.726 16K (34 kbits/sec simplex) G.726 32K (50 kbits/sec simplex), G.711 (82 kbits/sec simplex)
