4047 AUTOMATIC TUNING HF HORIZONTAL DIPOLE

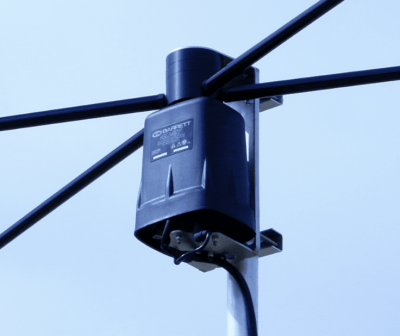

The Barrett 4047 Automatic Tuning HF Horizontal Dipole (P/N BC404701) is specifically designed to interface with Barrett 4000 series HF transceivers. It is designed for base station applications where space is limited but high performance is still required.

Providing a frequency coverage of 1.5 to 30 MHz, the Barrett 4047 features rapid tuning (typically less than 1.5 s) and low power consumption capabilities.

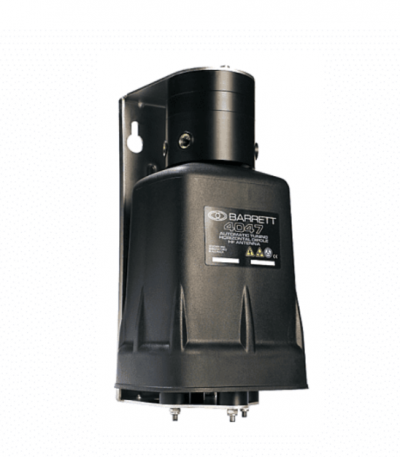

The active tuning elements of the antenna are housed in a waterproof, high-impact resistant molding. The main antenna body has RF and control connectors. The 4047 is supplied as standard with a 30 metre composite RF control cable. Due to its rugged RF design, the Barrett 4049 antenna can be used with high duty cycle applications such as HF Data Systems.

Fast track

Features

1.5 - 30 MHZ Tuning Range

Compact Size

Easy installation in space restricted locations

150W (Digital, voice and data)

Internal GPS

ALE 2G/3G Compatible

Memory Tune (100 ms)

Mil-STD 810G
