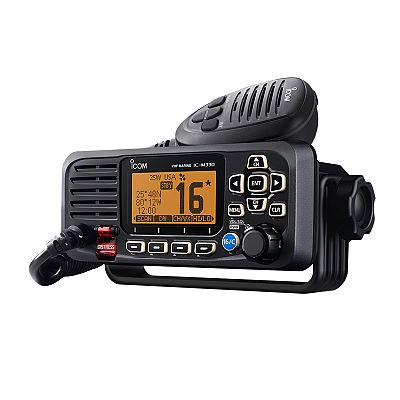

IC-M330GE VHF MARINE TRANSCEIVERS

Top Performance Ultra Compact VHF

Ultra Compact Body, Flexible Installation
The compact IC-M330E/GE measures only 156.5 (W) × 66.5 (H) × 110.1 (D) mm making it ideal for a cockpit where space is limited.

Installation can be carried out by means of the provided U-shaped mounting bracket (base / substructure) or with the optional mounting kit MBF-5 (for installation in an instrument panel; see above).

Built-in Class D DSC
The radio monitors CH 70 continuously, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls

Intuitive User Interface
A combination of the directional keypad and soft keys provides simple, smooth operation. Most used functions are assigned to soft keys for quick one push function access.

Class Leading Receiver Performance
The IC-M330E/GE’s receiver provides reliable communication in RF busy environment like a marina. (Selectivity and IMD: more than 70 dB)

GPS Receiver Built-in (IC-M330GE)
A built-in GPS receiver provides your location, bearing and speed by using information from GPS, GLONASS and SBAS. The acquired position information can be used for DSC calls.

AIS Target Call MA-500TR
When the IC-M330GE is connected to the optional MA-500TR Class B AIS transponder, the AIS Destination Call feature allows you to make an individual DSC call from the MA-500TR without manual MMSI number on the transceiver to capture.

Favorite channel function
The Favorites channel feature allows you to efficiently scan and fast channel selection. Add the desired channel (★ mark) to the preferred channels. The normal and priority scans search for active channels within the preferred channels. Use the UP / DOWN buttons on the microphone to toggle between preferred channels while skipping unmarked channels.

Made in Japan Quality and Reliability
All Icom products are tested to pass rigorous in-house tests as well as environmental tests at the Wakayama Icom plant before shipping. Our world-leading products and quality is tradition.

• IPX7 waterproof (1 m depth of water for 30 minutes)
• AquaQuake™ prevents audio degradation from a water-logged speaker
• Common NMEA interface for external GPS/NAV connection
• MA-500TR Class B AIS transponder compatible
• Tag scan and favorite channel functions
• Dual/tri-watch function for monitoring CH16 and/or call channel
• Priority scan function
• Display and keypad backlighting
• External speaker connection
• 3-digit or 4-digit channel display selectable
• Supplied hand microphone, HM-235B/W, with channel up/down keys and a CH16/Call channel key
