Rapid Deployment Broadband Dipole HF Antenna - 150W
For temporary base station and manpack portable operation at up to 150W PEP, without an automatic tuner, Barrett transceivers can be operated using the 912 rapid deployment broadband or tuned dipoles.

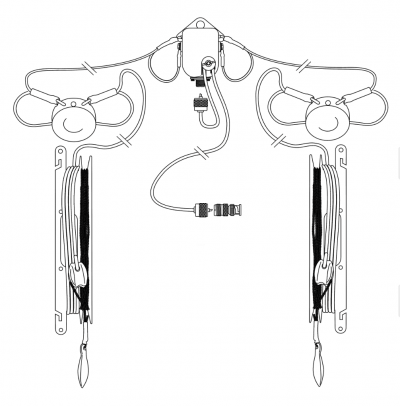

Rapid deployment broadband dipole antenna – 150 W (P/N 2090-02-03)
Operates from 2 to 30 MHz without adjustment – 150 W PEP max.
Can be deployed as full length broadband dipole or in compact form.
Manufactured with Kevlar radiators and UV resistant Dacron cords.
Rapid deployment tunable wire dipole antenna – 150 W (P/N 2090-02-01)
Operates from 2 to 30 MHz – 150 W PEP max. Frequency markers attached to Kevlar radiators.
Specifications
Electrical
- Frequency Range 2 - 30 MHz
- Input Impedance 50 ohms
- Power Rating 150 W PEP
- Connector UHF female with BNC adaptor
- Polarisation Horizontal
- Radiation Pattern Essentially Omni-Directional (when mounted as an inverted-V)
Mechanical
- Material Kevlar core, copper braid, pvc sheath, UV Stablized Re-inforced Nylon housings
- Length 48m
- Weight 1.2kg
- Packed size 37cm x 18cm x 5cm
- Colour Radiating wire elements - NATO green; Balun housing - black
Environmental
- Wind 160 km / hour survival, 120 km / hour operational
- Temperature -40° C to +70° C operational -40° C to +85° C storage
- Humidity 0% to 97% relative humidity
- Ingress Protection To IP67 (dust and water)
