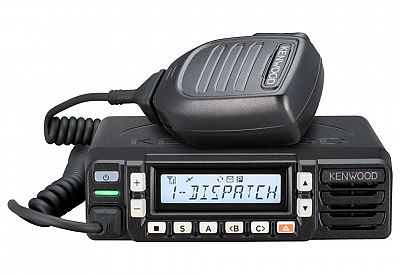

NX-1800DE DMR Mobile Radio (EU Use)
UHF DMR/Analogue Mobile Transceiver (EU Use)
SOUND PERFORMANCE, SMOOTH OPERATION
Emulating the distinguished NX-3000 and NX-5000 series, the NX-1800 mobile radio supports multiple protocols – including NXDN plus DMR – and mixed digital & FM analogue operation as it’s packed with all the features essential for making the most of these digital CAIs.
It clearly qualifies as a cost-effective solution for numerous enterprise- and operation-critical applications.

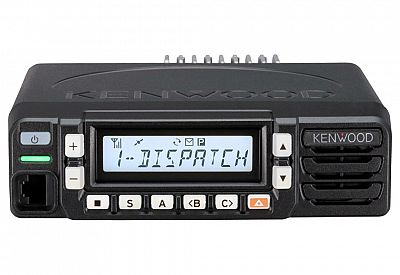

It’s also equipped with optimisable TX/RX audio quality and a smart front panel that prioritises simple convenience: operational status is clear at a glance from the white backlit LCD display, and 7-colour LED indicator.
Key Features
- "One Radio" with Multi-protocol Support: designed to operate under an NXDN or DMR digital CAI, and FM analog protocols
- Upgradable Digital/Analog mode by software option (no firmware upgrade required)
- Easy visible, white backlit LCD display: Alphanumeric, 10-digit, 13-character frame (aliases and icons)
- 7-color LED indicator used to display various radio status
- Max. 260 Channels per radio, 128 Zones per radio, and 250 Channels per zone
- Renowned KENWOOD Audio Quality: 6 W (max) loud audio and optimizable TX/RX audio profile: Audio Equalizer, Auto Gain Control (TX/RX) and Microphone type settings
- Various scan functions: Dual/Single Priority scan, Multi/Single Zone scan and more
- Orange-colored Emergency button & Customizable Emergency functions

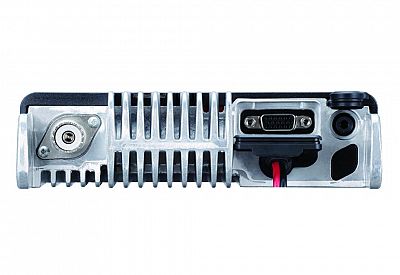

- D-sub, 15-pin connector on the rear panel
- IP54 and MIL-STD 810C/D/E/F/G/H
PMR General Features
| Multi-coloured LED | Yes, 7-colours - Yellow, Purple, Blue, Light Blue, Red, Green & White |
| 5-Tone Signalling formats | Yes |
| Busy Channel Lock-out | Yes |
| Compact Design | Yes |
| Ease of Operating Use | Yes |
| Flash Upgradeable Firmware | Yes |
| Lone Worker Function | Yes |
| Programmable Function Keys | 6 Programmable Function Keys |
| QT (CTCSS) / DQT (digital) | Yes |
| Talk Around | Yes |
| Time-Out Timer | Yes |
| Voice Annunciation | Yes - Current Channel and Zone, in your choice of English, French, German, Italian, Dutch, Spanish or Russian |
| Windows PC Programming and Tuning | Yes |
DMR Features
| AMBE+2 Vocoder | Yes |
| ARC4 Enhanced Encryption | Yes, - option - |
| Call Interruption | Yes |
| Digital Analog Mixed Mode | Yes |
| Digital Bit Scrambler | Yes |
| Direct Mode (P2P) | Yes, Selectable from ETSI newer or older definitions |
| DMR Auto Slot Select | Yes |
| Dual-slot Direct Mode | Yes |
| Group / Individual Call | Yes |
| Individual Call with Acknowledgement | Yes |
| Late Entry | Yes |
| Over-the-Air Alias (OAA) | Yes |
| Remote Stun Kill, Monitor, Check & Control | Yes |
| Single-slot Data Timing | Yes |
| Site Roaming | Yes |
| Status / Short Data, Paging Call | Yes |
| TDMA 2-slot System Architecture | Yes |
Applicable Standards
| RE Directive | EN300 086-2, EN300 113-2, EN300 219-2, EN301 489-5, EN300 440-2 |
| EU Safety | EN60215, EN62368 |
| For use in the EU | Yes |
| IP54 | Yes |
| Measurement - EIA Standards | Yes |
| Measurement - EN Standards | Yes |
| MIL-STD 810 C/D/E/F/G/H | Yes |
Technical Specifications
| Frequency Range | 400 - 470 MHz |
| Number of Channels | 260 |
| Number of Zones | 128 |
| Channel Spacing - Analogue - Wide/Mid/Narrow | 25 kHz/20 kHz/12.5 kHz |
| Channel Spacing - Digital - Wide/Narrow | 12.5 kHz/6.25 kHz |
| Antenna Impedance - 50 Ohm | Yes |
| Current Drain | Standby: 0.45 A max. RX: 2.4 A max. TX: 10.0 A max. |
| Frequency Stability | ± 0.5 ppm (-30 °C to + 60 °C) |
| Operating Temperature Range | -30 °C to + 60 °C |
| Operating Voltage | 13.2 V DC (10.8 - 15.6 V DC) |
| Dimensions | 160 x 43 x 137.7 mm - Projections not included - |
| Weight (net) | 1.21 kg |
Accessories
KES-5 Audio Accessories
External speaker
KLF-2 Noise Filters
Line Noise Filter

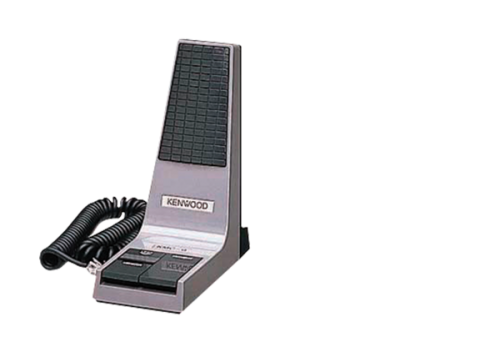

KMC-9C Audio Accessories
Desk Microphone

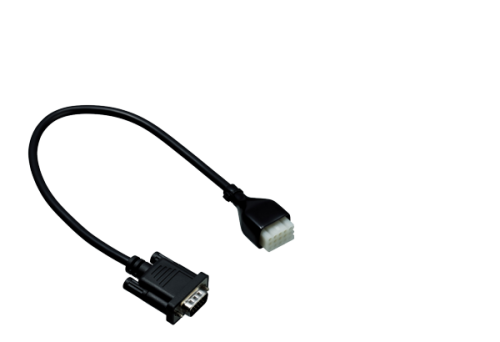

KCT-60 Cables
Connection Cable (D-Sub to Molex)

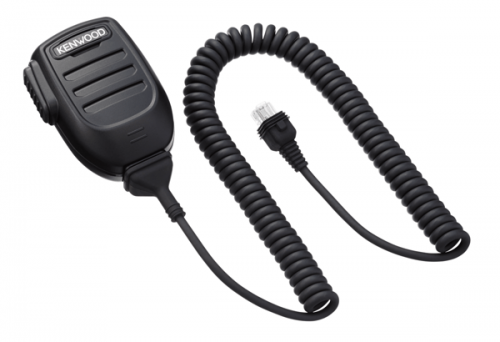

KMC-65 Audio Accessories
Basic microphone
KMC-66 Audio Accessories
12 Keypad Microphone
