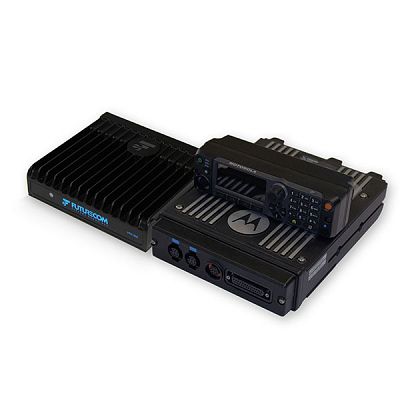

VRX1000 VEHICLE RADIO EXTENDER
Vehicle Radio Extender
A small and compact solution that is budget friendly, the VRX1000 provides federal agencies, state patrol and public safety first responders the ability to communicate on their portable radios in a mobile-only coverage area.
Equipped with cross-band and in-band performance, and available in 700/800 MHz VHF and UHF frequencies, the VRX1000 is a compact 3W simplex radio extender integrated with Motorola APX™2500, APX™4500, APX™5500, APX™6500 and APX™7500 mobile radios.
A scaled down version of the industry leading 10W full duplex DVRS, the VRX1000 improves portable radio coverage while keeping users connected to either conventional or trunked networks.The small size of VRX1000 allows it to be easily installed in patrol cars and utility trucks.
Features
- Programmable output power: 0.5 - 3 watts
- Simplex operation.
- Analog operation standard with P25 software upgrades available.
- Available in VHF, UHF, 700/800 MHz bands.
- Integrates with remote mount APX™4500, APX™6500 and APX™7500 mobile radios.
- In-Band or Cross-Band configurations.
- Operates through mobile radio control head.
Performance characteristics
Channel Spacing:
12.5 or 25 kHz programmable
Number of Channels:
192 (1 Channel when in VRS750 compatible mode)
Number of VAX Enabled Mobile Radio Channels:
2047 entries
CTCSS/DCS:
Programmable per Analog Channel
Power Supply:
13.8V DC +/- 20%, negative ground only
Dimensions: Height /Width/ Depth:
45 mm (1.7") x 175 mm (6.8") x 160 mm (6.2")
(cross band, no filters)
Weight:
2kg / 4.4 lbs (cross band, no filters)
