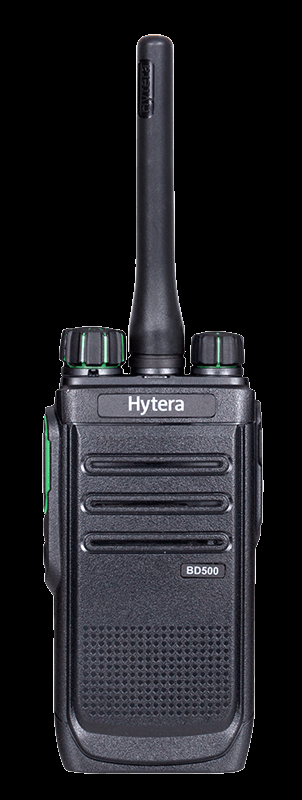

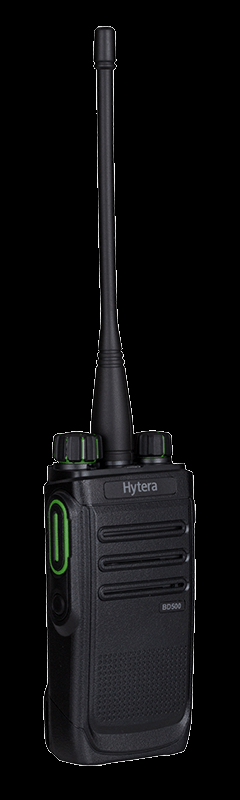

BD505 DMR Portable Radio
Mobile radio for getting started in digital technology (DMR)
The BD505 is a handheld radio for getting started in digital technology (DMR). It offers functions comparable to simple analog radios in the same price class, but with the advantages of digital transmission technology.
Features
Excellent performance
Thanks to its innovative design, the BD505 offers better performance than analog radios. Its excellent reception properties ensure trouble-freevoice communication.
Robust and durable
The BD505 was developed and tested in compliance with the military standard MIL-810 G. The dust and water-proof construction as per IP54 ensures reliability in different environments.
Clear voice
Use of digital coding and correction technology makes it possible to transmit voices without any interference - even over large distances.
Simple operation
Ergonomically optimized volume keys ensure easy operation, even while wearing gloves.
- Analog & Digital Auto Detect
- Scan
- Vox
General specifications
Frequency range
VHF: 136 – 174 MHz
UHF: 400 – 470 MHz
Supported operating modes
DMR Tier II in acc. with ETSI TS 102 361-1/2/3
Simulcast
Analog
Number of channels
48
Number of zones
3
Channel spacing
analog: 12.5 / 25 kHz
digital: 12.5 kHz
Operating voltage
7.2 V
Battery service life (5/5/90 duty cycle)
approx. 12 hours at 1500 mAh (analog)
approx. 16 hours at 2000 mAh (analog)
approx. 16 hours at 1500 mAh (digital)
approx. 22 hours at 2000 mAh (digital)
Standard battery
1500 mAh (lithium-ion battery)
2000 mAh (lithium-ion battery)
Frequency stability
± 0.5 ppm
Antenna impedance
50 Ω
Physical characteristics
Dimensions (H × W × D)
108 × 54 × 29 mm
Weight (with antenna and standard battery)
approx. 220 g
