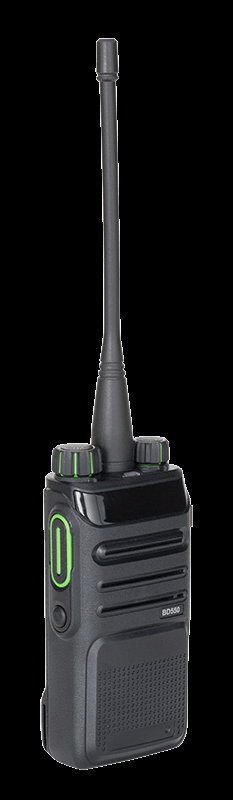

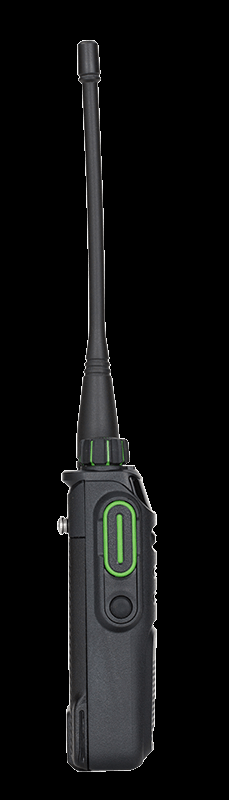

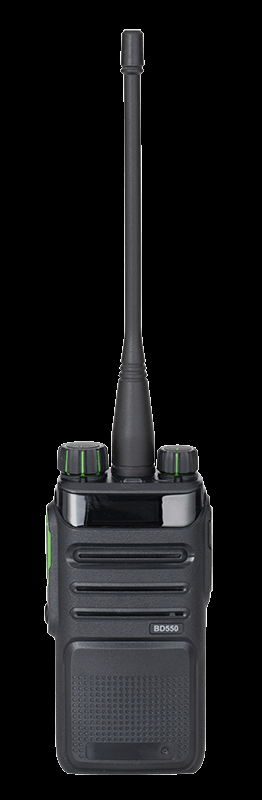

BD555 DMR Portable Radio

Mobile radio for getting started in digital technology (DMR)

Display
With a single-line display for the indication of the channel identifier (channel alias), name of the caller (caller alias) and the ID on pressing thepush-to-talk button (PTT ID).

Excellent performance
Thanks to its innovative design, the BD555 offers better performance than analog radios. Its excellent reception properties ensure trouble-freevoice communication.

Robust and durable
The BD555 was developed and tested in compliance with the military standard MIL-810 G. The dust and water-proof construction as per IP54 ensures reliability in different environments.

Clear voice
Use of digital coding and correction technology makes it possible to transmit voices without any interference - even over large distances.

• Analog & Digital Auto Detect
• Scan
• Vox

Frequency range
VHF: 136 – 174 MHz
UHF: 400 – 470 MHz

Supported operating modes
DMR Tier II
in acc. ETSI TS 102 361-1/2/3
Simulcast
Analog

Number of channels
256

Number of zones
16

Channel spacing
analog: 12.5 / 25 kHz
digital: 12.5 kHz

Operating voltage
7.2 V

Battery service life (5/5/90 duty cycle)
approx. 12 hours at 1500 mAh (analog)
approx. 16 hours at 2000 mAh (analog)
approx. 16 hours at 1500 mAh (digital)
approx. 22 hours at 2000 mAh (digital)

Standard battery
1500 mAh (lithium-ion battery)
2000 mAh (lithium-ion battery)

Frequency stability
± 0.5 ppm

Dimensions (H × W × D)
110 × 59 × 30 mm

Weight (with antenna and standard battery)
approx. 250 g

Display
0.91 inches

Operating temperature range
-30 °C to +60 °C

Storage temperature range
-40 °C to +85 °C

ESD
IEC 61000-4-2 (Level 4)
± 8 kV (contact)
± 15 kV (air)

Protection against dust and moisture
IP54

Shock and vibration resistance
MIL-STD-810 G

Relative humidity
MIL-STD-810 G
