PD365 DMR Portable Radio
Budget-priced DMR radio in smartphone format
With new software: As a result of legal patent litigations, the TDMA direct mode was removed for digital operation. With the Hytera patented Pseudo Trunking two parallel calls in direct mode are still possible.

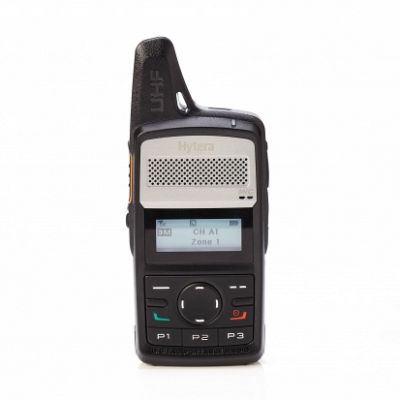

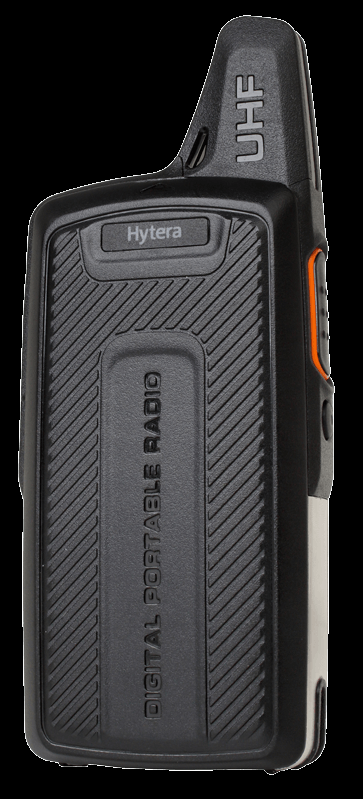

The PD365 from Hytera is a business radio in pocket format. The compact design and intuitive operation make this DMR handheld radio your companion for reliable digital radio communication.
Features
Digital radio never looked so good
The PD365 handheld radio excels with its stylish and compact design in smartphone format and its intuitive operation. With a weight of only 160 g, it can be carried conveniently even on long working days.
Support of analog and digital mobile radio
The PD365 was developed in compliance with the ETSI Digital Mobile Radio (DMR) standard. The handheld radio supports the conventional DMTR operation and it can also be operated as an analog radio.
Integrated antenna design
The unique integrated antenna design enables excellent availability without a large antenna on the radio.
Affordable pricing
In addition to a multitude of functions, the PD365 offers you quick and easy entry into the world of digital mobile radio at a fair price.
Long battery service life
The lithium-ion battery (2000 mAh) supplied enables the PD365 to achieve an operating time of at least 12 hours in digital mode, with a duty cycle of 5-5-90.
Digital encryption (optional)
Basic encryption without using algorithms improves immunity to eavesdropping.
Automatic cell re-selection (roaming) in IP multi-site systems (optional)
Mixed analog and digital channel
This function ensures that the PD365 can detect analog and digital signals and change automatically to the relevant operating mode.
- Selectable transmitting power: 1.5 W or 3 W
- Analog signaling: CTCSS, CDCSS
- Protection against dust and moisture in accordance with IP54
- Shock and vibration resistance according to MIL-STD-810 C/D/E/F/G
- DMR text messages with up to 64 characters
- Four programmable keys
- A key can be configured as emergency call button
- Charging and programming via Micro-USB interface
- Scan function for analog and digital channels
- Versatile voice calls: Individual call, group call, and broadcast call on digital channels
- Emergency alarm (Emergency call)
- Automatic cell re-selection (roaming) in IP multi-site systems (optional)
- Scramble
- Radio Check Decode
- Alert Call Decode
- Work Order
- Remote Monitor Decode (optional license)
- Enable & Disable Decode (optional license)
- Priority Interrupt (optional license)
- Pseudo trunking operation (DMO & RMO)
General specifications
Frequency range
UHF: 400 - 440 MHz, 430 - 470 MHz
Supported operating modes
DMR Tier II (conventional DMR)
Analog
DMR Tier II in according with ETSI TS 102 361-1/2/3
Number of channels
256 (128 analog + 128 digital)
Number of zones
16
Channel spacing
12.5/25 kHz (analog)
12.5 kHz (digital)
Operating voltage
3.7 V (nominal)
Standard battery
2000 mAh (lithium-ion battery)
Battery service life (5/5/90 duty cycle)
approx. 10 hours (analog)
ca. 12 hours (digital)
Frequency stability
±0.5 ppm
Antenna impedance
50 Ω
Physical characteristics
Dimensions (H × B × T)
135 × 58 × 24 mm
Weight
approx. 160 g
LCD display
monochrome LCD display, 3 lines
User environment
Operating temperature range
-30 °C to +60 °C
Storage temperature range
-40 °C to +85 °C
ESD
IEC 61000-4-2 (level 4)
±8 kV (contact) ±15 kV (air)
Protection against dust and moisture
IP54
Shock and vibration resistance
MIL-STD-810 C/D/E/F/G
Relative humidity
MIL-STD-810 C/D/E/F/G
