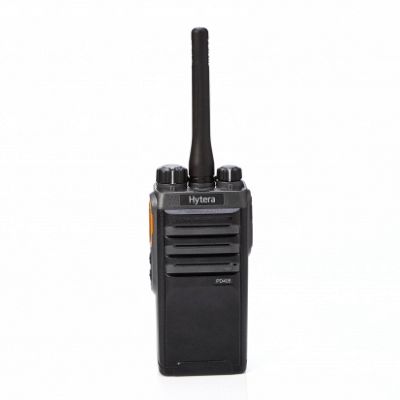

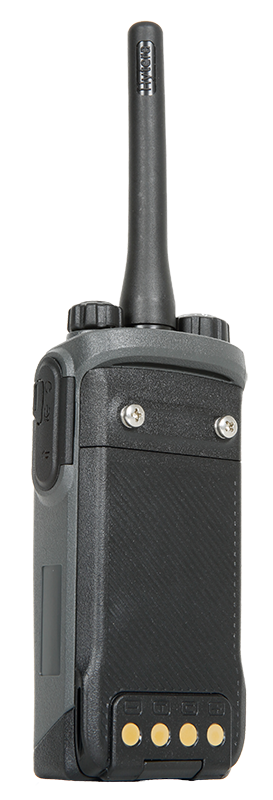

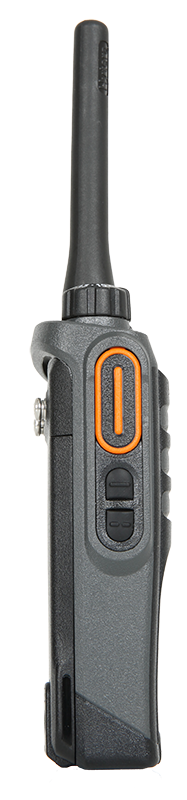

PD405 DMR Portable Radio
Affordable DMR radio set for getting started with DMR radio
With new software: As a result of legal patent litigations, the TDMA direct mode was removed for digital operation. With the Hytera patented Pseudo Trunking two parallel calls in direct mode are still possible.
The PD405 DMR handheld radio gives you conventional DMR radio at an starter price. It is particularly enduring and achieves with the rechargeable battery supplied operation times of up to remarkable 16 hours in digital mode. Moreover it supports mixed-channel operation, so is able to detect analog and digital signals on a single channel, and to change automatically to the relevant operating mode.
Features
Long battery service life
With its battery service life of up to 16 hours in digital mode, the PD405 shows stamina and is therefore reliable even when deployed for long periods.
Impressive voice quality
With its embedded digital technology the PD405 produces outstanding voice quality even in noisy environments and at the outer perimeter of radio coverage.
Improved utilization of the frequency spectrum
Thanks to the TDMA process, the PD405 enables you to configure the available bandwidth with double the number of channels compared to the conventional analog radio. This has a clear mitigating effect on increasing spectrum scarcity.
Mixed analog and digital channel
Due to this function the PD405 can differentiate between analog and digital signals received and changes automatically to the corresponding operating mode.
Robust
The PD405 handheld radio is dust and water-resistant according to IP55, and meets the US military standard MIL-STD-810 C/D/E/F/G.
Digital encryption (optional)
Basic encryption without using algorithms improves immunity to eavesdropping.
Automatic cell re-selection (roaming) in IP multi-site systems (optional)
- Different operating modes: analog, DMR Tier II or mixed
- Scans digital or analog channels
- Supports pre-programmed text message transmission
- Voice operated transmit (VOX)
- Small, slim, light: 112 x 54 x 28 mm, weighing only 270 g
- Individual call, group call and all call
- Emergency alarm (Emergency call)
- A key can be configured as emergency call button
- Automatic cell re-selection (roaming) in IP multi-site systems (optional)
- Scramble
- Radio Check Decode
- Alert Call Decode
- Remote Monitor Decode (optional license)
- Enable & Disable Decode (optional license)
- Priority Interrupt (optional license)
- Pseudo trunking operation (DMO & RMO)
General specifications
Frequency range
VHF: 136 - 174 MHz
UHF: 400 - 470 MHz
Supported operating modes
DMR Tier II (conventional DMR)
Analog
DMR Tier II in accordance to ETSI TS 102 361-1/2/3
Number of channels
256 (128 analog + 128 digital)
Number of zones
3
Channel spacing
12.5 / 25 kHz
Operating voltage
7.4 V (nominal)
Standard battery
1500 mAh (lithium-ion battery)
Battery service life (5-5-90 duty cycle, high transmitting power, standard battery) Analog / Digital
ca. 12 / 16 hours (at 1500 mAh)
ca. 16 / 22 hours (at 2000 mAh)
Frequency stability
±0.5 ppm
Antenna impedance
50 Ω
Physical characteristics
Dimensions (H×W×D, without antenna)
112 x 54 x 28 mm
Weight
approx. 270 g
Programmable keys
2
User environment
Operating temperature range
-30 °C to +60 °C
Storage temperature range
-40 °C to +85 °C
ESD
IEC 61000-4-2 (level 4)
±8 kV (contact) ±15 kV (air)
Protection against dust and moisture
IP55
Shock and vibration resistance
MIL-STD-810 C/D/E/F/G
Relative humidity
MIL-STD-810 C/D/E/F/G
