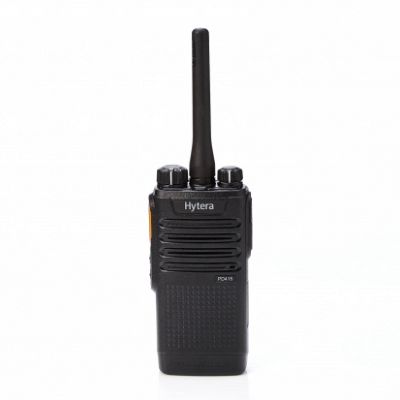

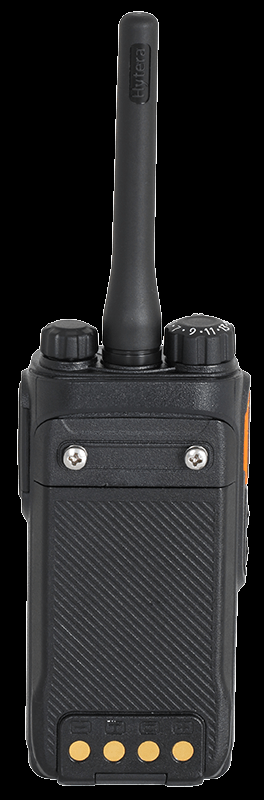

PD415 DMR Portable Radio
Conventional DMR radio with integrated RFID reader
With new software: As a result of legal patent litigations, the TDMA direct mode was removed for digital operation. With the Hytera patented Pseudo Trunking two parallel calls in direct mode are still possible.
The PD415 DMR handheld radio gives you conventional DMR radio and an integrated RFID reader. As part of the Hytera Patrol System it is the ideal radio for security personnel who patrol complex buildings. The PD415 is particularly enduring and achieves with the rechargeable battery supplied operation times of up to remarkable 16 hours in digital mode.
Features
Integrated RFID reader
With the integrated RFID reader, the PD415 can read information from an RFID tag and transmit this information automatically by radio. In this way the radio supports the Hytera Patrol System.
Patrol system
The Hytera Patrol System is a patrol system for the management of patrol information. This solution enables the positions of security personnel to be monitored centrally and in real time on a digital map.
Impressive voice quality
With its embedded digital technology the PD415 produces outstanding voice quality even in noisy environments and at the outer perimeter of radio coverage.
Improved utilization of the frequency spectrum
Thanks to the TDMA process, the PD415 enables you to configure the available bandwidth with double the number of channels compared to the conventional analog radio. This has a clear mitigating effect on increasing spectrum scarcity.
Mixed analog and digital channel
This function ensures that the PD415 can detect analog and digital signals and change automatically to the relevant operating mode.
Robust
The PD415 handheld radio is dust and water-resistant according to IP54, and meets the US military standard MIL-STD-810 C/D/E/F/G.
Long battery service life
With its battery service life of up to 16 hours in digital mode, the PD415 shows stamina and is therefore reliable even when deployed for long periods.
Digital encryption (optional)
Basic encryption without using algorithms improves immunity to eavesdropping.
Automatic cell re-selection (roaming) in IP multi-site systems (optional)
- Different operating modes: analog, DMR Tier II or mixed
- Scans digital or analog channels
- Supports pre-programmed text message transmission
- VOX (voice-controlled send keying)
- Small, slim, light: 112 x 55 x 31 mm, weighing only 270 g
- Individual call, group call and all call
- Emergency alarm (Emergency call)
- A key can be configured as emergency call button
- Automatic cell re-selection (roaming) in IP multi-site systems (optional)
- Scramble
- Radio Check Decode
- Alert Call Decode
- Remote Monitor Decode (optional license)
- Enable & Disable Decode (optional license)
- Priority Interrupt (optional license)
- Pseudo trunking operation (DMO & RMO)
General specifications
Frequency range
VHF: 136 - 174 MHz
UHF: 400 - 470 MHz
Supported operating modes
DMR Tier II (conventional DMR)
Simulcast
Analog
DMR Tier II in accordance with ETSI TS 102 361-1/2/3
Number of channels
256 (128 analog + 128 digital)
Number of zones
3
Channel spacing
12.5 / 25 kHz
Operating voltage
7.4 V (nominal)
Standard battery
1500 mAh (lithium-ion battery)
Battery service life (5-5-90 duty cycle, high transmitting power, standard battery) Analog / Digital
ca. 12 / 16 hours (at 1500 mAh)
ca. 16 / 22 hours (at 2000 mAh)
Frequency stability
±0.5 ppm
Antenna impedance
50 Ω
Physical characteristics
Dimensions (H×W×D, without antenna)
112 x 54 x 31 mm
Weight (with antenna and standard battery)
approx. 270 g
Range of the RFID reader
Up to 4 cm
Range of the RFID reader
Up to 4 cm
User environment
Operating temperature range
-30 °C to +60 °C
Storage temperature range
-40 °C to +85 °C
ESD
IEC 61000-4-2 (level 4)
±8 kV (contact) ±15 kV (air)
Protection against dust and moisture
IP54
Shock and vibration resistance
MIL-STD-810 C/D/E/F/G
Relative humidity
MIL-STD-810 C/D/E/F/G
