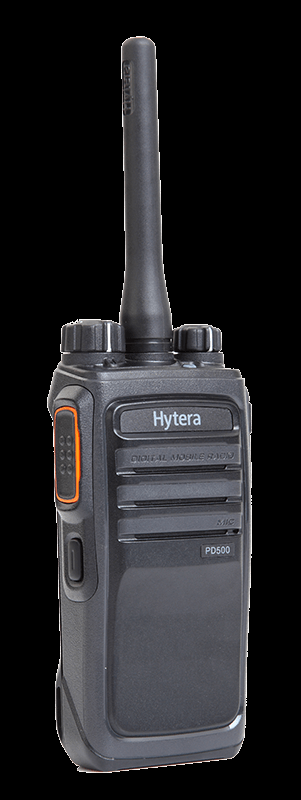

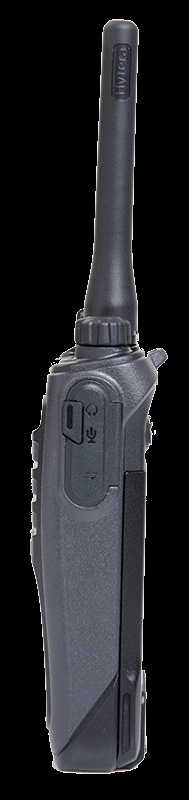

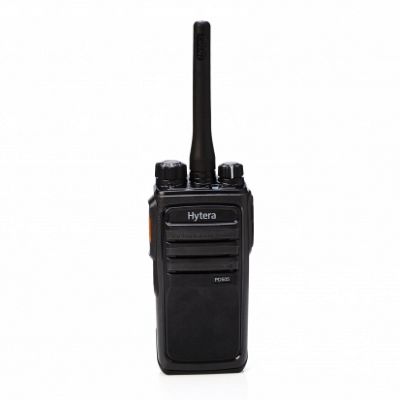

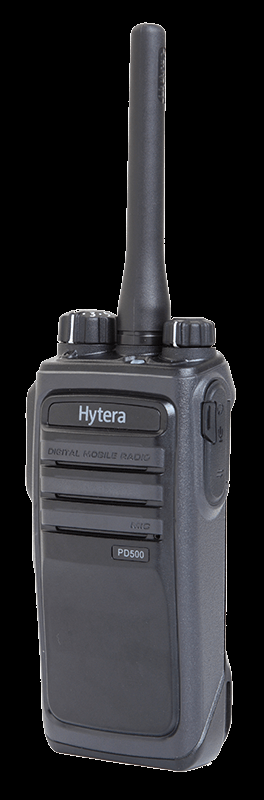

PD505 DMR Portable Radio
Compact cost-effective DMR handheld radio with long battery service life
With new software (R9.0): As a result of legal patent litigations, the TDMA direct mode was removed for digital operation. With the Hytera patented Pseudo Trunking two parallel calls in direct mode are still possible.
The PD505 handheld radio impresses with its lightweight design, range of functions and highcost-effectiveness. Its compact housing, outstandingvoice quality and support for both digital and analog radio will bring a breath of fresh air to your radio communication.
Features
Improved utilization of the frequency spectrum
Thanks to the TDMA process, the PD505 enables you to assign the available bandwidth with double the number of channels. This has a clear mitigating effect on the increasing spectrum scarcity encountered when using DMR radio systems.
Ergonomic design
The PD505 handheld radio is easy to operate and highly reliable, which is indispensable in critical situations.
Individual button design
The two rotary buttons of the radio transceiver are separated by the antenna. This design prevents operating errors.
Light and easy to operate
The radios of the PD5 series are particularly ergonomic and easy to operate. With a weight of only 260 g (PD505) or 280 g (PD565), the PD5 series offers a high level of mobility comfort.
Long battery service life
The lithium-ion battery (1500 mAh) in digital mode reaches an operating period of at least 16 hours (duty cycle 5-5-90). With the optionally available 2000-mAh battery, it will even be 20 hours.
Support of analog and digital mobile radio
The PD5 series was developed in compliance with the ETSI mobile radio standard Digital Mobile Radio (DMR). The handheld radios support the conventional DMR mode and can also be operated in manual mode. Moreover, the radios support Hytera XPT radio systems. That makes the terminals of the PD5 series the ideal companion for the move to digital mobile radio.
Upgradeable firmware
The upgradable firmware makes it possible to add new features. By altering the firmware-software, other digital and analog operating modes can be enabled, without the need for purchasing a new radio device.
Basic functions
- One-touch functions with which preprogrammed text messages, voice calls and supplementary functions can be called up quickly
- Versatile voice calls: Individual call, group call, broadcast call, data call, emergency call
- Support of several expanded analog signal modes, including HDC1200, 2-tone and 5-tone, for an improved integration in existing analog radio fleets
- DMRA data service · Cell re-selection (roaming)
- Scan
- Channel announcement
Special functions
Rental function
Security
- Emergency alarm
- Button can be programmed as emergency button
- Alarm call
- Lone worker function
- Hytera basic encryption (40 bit) in digital operation
- Priority Interrupt (optional license, not for XPT)
- Remote Monitor (optional license)
- Wireless radio activation/deactivation (enable/disable)
- Scrambler function in analog operation
Audio functions
- Automatic gain control (AGC)
- Digital rejection of acoustic feedback
- Treble boost
General
Frequency range
VHF: 136 - 174 MHz
UHF: 400 - 470 MHz
Supported operating modes
DMR Tier II according to ETSI TS 102 361-1/2/3
Simulcast
XPT Digital Trunking
Analog
Number of channels
256
Number of zones
16
Channel spacing
12.5/20/25 kHz (analog)
12.5 kHz (digital)
Operating voltage
7.4 V (nominal)
Standard battery
1500 mAh (lithium-ion battery)
Battery service life (5-5-90 duty cycle, high transmitting power, standard battery)
approx. 11 hours (analog)
approx. 16 hours (digital) with 1500 mAh
approx. 20 hours (digital) with 2000 mAh
Frequency stability
±0.5 ppm
Antenna impedance
50 Ω
Physical characteristics
Dimensions (H×W×D) / (without antenna)
115 x 54 x 27 mm
Weight
approx. 260 g
