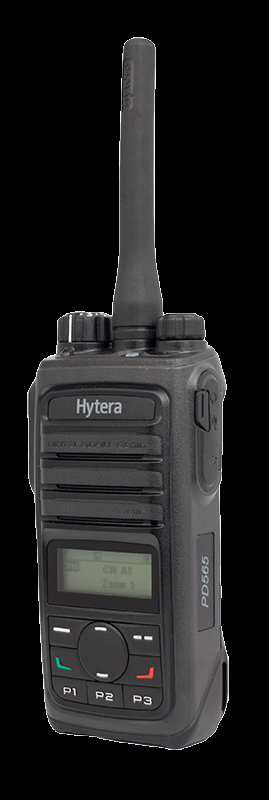

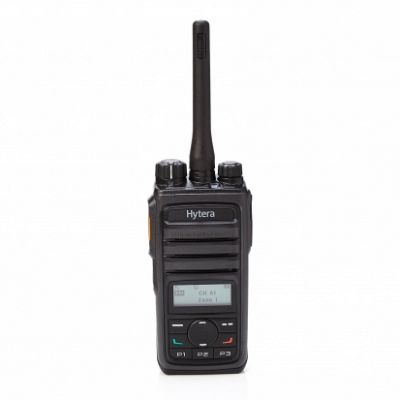

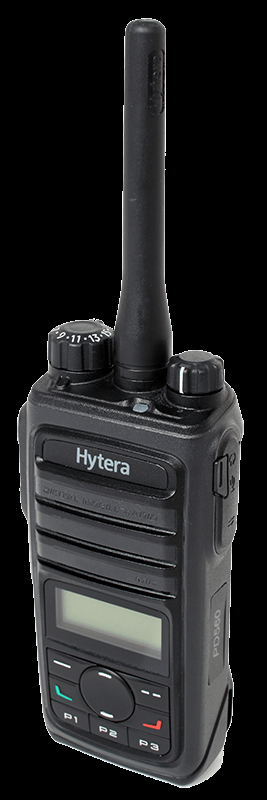

PD565 DMR Portable Radio

Compact design and outstanding value for the money

With new software (R9.0): As a result of legal patent litigations, the TDMA direct mode was removed for digital operation. With the Hytera patented Pseudo Trunking two parallel calls in direct mode are still possible.

The PD565 from Hytera impresses with its compact design, its range of functions and its excellent value for the money. With the support of digital and analog mobile radio, the PD565 is your perfect companion for entering the world of professional digital mobile radio.

How to buy Share this page Subscribe to newsletter

Product info

Features

Light and easy to operate
The radios of the PD5 series are particularly ergonomic and easy to operate. With a weight of only 280 g, the PD565 offers you a high level of mobility comfort.

Cost-efficient with superlative voice quality
With the combined application of the narrow band codec and digital technologies for error correction, the PD565 ensures excellent voice quality even in loud environments and in peripheral areas of radio coverage.

Long battery service life
The PD565 was developed in compliance withthe ETSI Digital Mobile Radio (DMR) standard.With the optionally available 2000-mAh battery,it will even be 20 hours.

Support of analog and digital mobile radio
The PD565 was developed in conformity with the ETSI radio standard Digital Mobile Radio (DMR). The handheld radio supports the conventional DMR mode and can also be operated in manual mode. On top of that, the radios support Hytera XPT radio systems. That makes the terminals of the PD5 series the ideal companion for the move to digital mobile radio.

Basic functions

One-touch functions with which preprogrammed text messages, voice calls and supplementary functions can be called up quickly
Versatile voice calls: Individual call, group call, broadcast call, data call, emergency call
Support of several expanded analog signal modes, including HDC1200, 2-tone and 5-tone, for an improved integration in existing analog radio fleets
DMRA data service
Cell re-selection (roaming)
Scan
Channel announcement

Special functions
Rental function

Security

Emergency alarm
Button can be programmed as emergency button
Alarm call
Lone worker function
Hytera basic encryption (40 bit) in digital operation
Priority Interrupt (optional license, not for XPT)
Remote Monitor (optional license)
Wireless radio activation/deactivation (enable/disable)
Scrambler function in analog operation

Audio functions

Automatic gain control (AGC)
Digital rejection of acoustic feedback
Treble boost

General specifications

Frequency range
VHF: 136 - 174 MHz
UHF: 400 - 470 MHz

Supported operating modes
DMR Tier II (conventional DMR)
Simulcast
XPT Digital Trunking
Analog
DMR Tier II in accordance with ETSI TS 102 361-1/2/3

Number of channels
512

Number of zones
32

Channel spacing
12/20/25 kHz (analog)
12.5 kHz (digital)

Operating voltage
7.4 V (nominal)

Standard battery
1500 mAh (lithium-ion battery)

Battery service life (5-5-90 duty cycle, high transmitting power, standard battery)
approx. 11 hours (analog)
approx. 16 hours (digital) with 1500 mAh
approx. 20 hours (digital) with 2000 mAh

Frequency stability
±0.5 ppm

Antenna impedance
50 Ω
