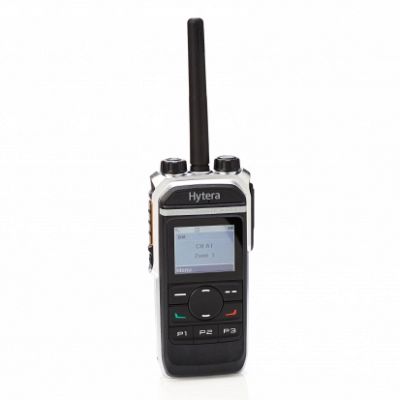

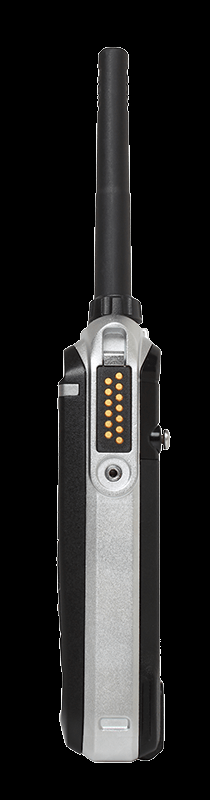

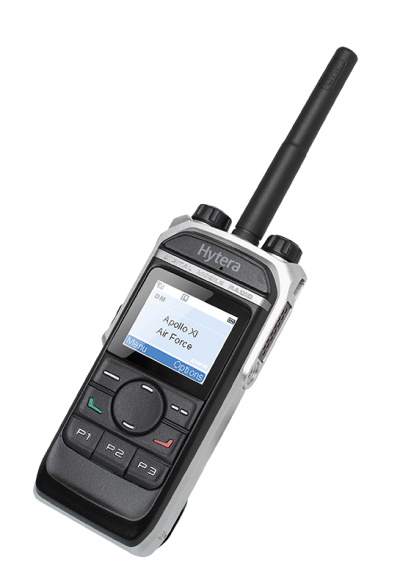

PD665 DMR Portable Radio
Lightweight DMR radio with metal housing and six programmable keys
With new software (R9.0): As a result of legal patent litigations, the TDMA direct mode was removed for digital operation. With the Hytera patented Pseudo Trunking two parallel calls in direct mode are still possible.
The PD665 from Hytera is a breath of fresh air for your radio communications. With its lightweight metal housing and support of digital and analog mobile radio, the handheld radio PD665 series is the ideal companion for migrating to digital mobile radio. Compared to the PD605, the PD665 has a bright LCD display and six programmable keys.
Features
Small, lightweight and narrow
The radios of the PD6 series are only 27 mm deep, making them particularly compact. The housings are trimmed in a high-quality aluminum frame and are comfortable to carry for long periods with a weight of only 310 g.
Long battery service life
With the supplied 1500 mAh lithium-ion battery, the handheld radio PD665 has an operating period of at least 16 hours in digital mode. With the optionally available 2000-mAh battery, it will even be 20 hours.
Expanded frequency range
The frequency range in UHF stretches from 400 MHz to 527 MHz.
Versatile
The PD665 has both an analog mode and a digital mode and is compatible with analog radio systems, as a consequence it is very easy for you to change to the digital age.
- Every radio of the PD6 series is also available with GPS. Variants with GPS support GIS applications, such as AVL and telemetry.
- Encryption with the encryption algorithm ARC4 (40 bit) in accordance with DMRA or with optional algorithms AES128 and AES256 (128 and 256 bit)
- Expansion interface for applications
- Man-down function (optional)
- Leasing function
- Versatile voice calls: Individual call, group call, broadcast call, emergency call
General
Frequency range
VHF: 136 – 174 MHz
UHF: 400 – 470 MHz | 400 – 527 MHz
Supported operating modes
DMR Tier II (ETSI TS 102 361-1/2/3)
Simulcast
XPT Digital Trunking
DMR Tier III (ETSI TS 102 361-1/2/3/4)
Analog
Number of channels
1024
Number of zones
64
Channel spacing
12.5 / 20 / 25 kHz (analog)
12.5 kHz (digital)
Operating voltage
7.4 V (nominal)
Battery available
1500 mAh (lithium-ion battery)
2000 mAh (lithium-ion battery)
Battery service life (5/5/90 duty cycle, high transmitting power, standard battery)
approx. 11 hours (analog)
approx. 16 hours (digital) (with 1500 mAh)
approx. 22 hours (digital) (with 2000 mAh)
Frequency stability
±0.5 ppm
Antenna impedance
50 Ω
Programmable keys
6
LCD display
160 × 128 pixel, 65,536 colors, 1.8 inches, 4 lines
Physical characteristics
Dimensions (H×W×D, without antenna)
119 x 54 x 27 mm
Weight (with antenna and standard battery)
approx. 310 g
