PD705/PD705G DMR Portable Radios

Robust and reliable radios in tough environments

Improved utilization of the frequency spectrum
Thanks to the TDMA process, the PD705/PD705G enables you to configure the available bandwidth with double the number of channels. This has a clear mitigating effect on increasing spectrum scarcity.

Ergonomic design

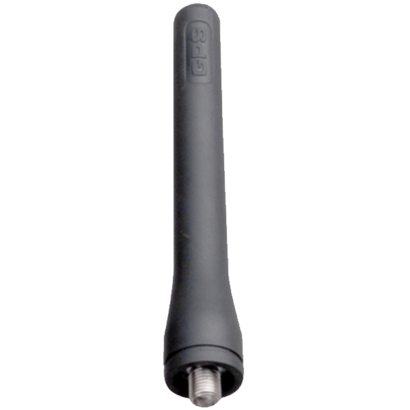

Hytera's PD705 and PD705G (variant with GPS) handheld radios offer ease of operation and reliability, which is indispensable in critical situations. The ingeniously devised and intelligent industry antenna design assures comfortable operation and remarkable GPS properties.

Individual button design
The two rotary buttons of the radio transceiver are separated by the antenna. This design prevents incorrect operations.

Reliability
The PD705/PD705G meets all the requirements of the open ETSI standard DMR as well as MIL810-C/D/E/F/G and degree of protection IP67. The device series thus offers excellent features even under harsh operating conditions.

Powerful battery
Compared to analog technology and the FDMA process, TDMA enables the battery service life to be increased by about 40% depending on operating conditions.

Excellent voice quality
With the combined application of the narrow band codex and technologies for debugging the PD705/705G ensures an excellent voice quality even in loud environment and in peripheral areas of radio coverage.

Upgradeable software
Upgradeable software enables the possibility of new features. By altering the firmware-software, other digital and analog operating modes can be enabled, without the need for purchasing a new radio device.

• Optional analog or digital operation
• Versatile voice calls: Individual call, group call, broadcast call, emergency call
• Control of the radio via API
• Different analog dialing methods: HDC1200, DTMF, 2-tone and 5-tone dialing, squelch method, tone-coded CTCSS/CDCSS
• Supplementary services: Radio Check, Remote Monitor, Call Alert, Radio Disable/Enable
• Scanning: of analog voice and signaling, of digital voice and data, – mixed scanning of analog and digital activities
• Automatic cell re-selection (roaming) in IP multi-site systems
• Secure encryption with encryption algorithm ARC4 (40 bit) in accordance with DMRA or with optional algorithms AES128 and AES256 (128 and 256 bit)
• Upgradeable software

Dimensions (H×W×D, without antenna)
125 x 55 x 35 mm

Weight (with antenna and standard battery)
approx. 335 g

Operating temperature range
 -30 °C to +60 °C

Storage temperature range
-40 °C to +85 °C

ESD
IEC 61000-4-2 (level 4)
±8 kV (contact) ±15 kV (air)

Protection against dust and moisture
IP67

Shock and vibration resistance
MIL-STD-810 C/D/E/F/G

Relative humidity
MIL-STD-810 C/D/E/F/G
