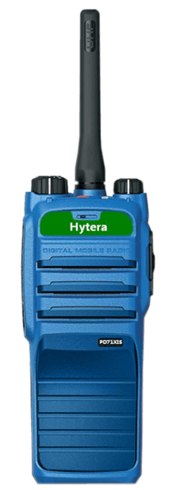

PD715IS ATEX DMR Portable Radio

Highest intrinsic safety class for DMR communication in explosive areas

Maximum safety
All radios used in potentially explosive environments must comply with the European Union's ATEX directives. The PD715IS fulfills the ATEX directives with the highest protection level of "ia":

• ATEX Gas Protection: II 1 G Ex ia IIC T3
• ATEX Dust Protection: II 1D Ex ia IIIC T160 °C IP5X
• ATEX Protection for Mining Application: I M1 Ex ia

Robust & reliable
The PD715IS handheld radio has been developed for use in tough working environments. Besides meeting the requirements of the European ATEX and IEC Directives, as well as the North-American FM standard, the radio is also compliant with the MIL-STD-810C/D/E/F/G standard and is dust and water-resistant to protection class IP67.

Upgradeable firmware
Having upgradeable firmware makes it possible to enhance the system with new features. Changing the firmware-software enables other digital and analog operating modes to be integrated without having to purchase a new radio.

Failsafe design and battery latch
The PD715IS is protected from misuse by its physical design. Using batteries or accessory components with an insufficient level of protection automatically triggers an alarm so that malfunctions of this type cannot occur.

Innovative plastic encapsulation
Both the radio itself and the battery are encapsulated in plastic. This prevents any liquid, dust or harmful gas from entering and coming into contact with the internal circuits.

Integrated GPS module as standard
With the aid of the integrated GPS module the PD715IS can send position information to dispatcher systems, for example. Dispatchers can evaluate this information and use functions such as geofencing, radio localization and GPS tracking.

• Supports various different operating modes, choice of conventional analog or digital mobile radio (DMR), as well as MPT, XPT and DMR trunked radio
• Automatic cell re-selection (roaming) in IP multi-site systems
• Scanning
• One-touch functions (incl. text messages, voice calls and supplementary services)
• Supplementary services, radio check, remote monitor, call alert, radio disable/enable
• Various analog dialing methods (HDC1200, DTMF, 2-tone and 5-tone dialing, squelch procedure / CTCSS/CDCSS tone call)
• Data services (text messages, group text messages, control of the radio via an API)
• Safety functions for the user, such as lone worker function/dead man's alarm
• Versatile voice calls: Individual call, group call, broadcast call, emergency call
• Secure encryption with the ARC4 (40 bit) encryption algorithm in accordance with DMRA or with optional AES128 and AES256 (128 and 256 bit) algorithms
• Over the Air Encryption: Encryption of the signaling protects against unauthorized access to the repeater and interception of the connection data using a DMR scanner

Dimensions (H×W×D, without antenna)
141 x 55 x 37 mm

Weight (with antenna and standard battery)
485 g

Environmental conditions
-30 °C to +60 °C (safe environment)
-20°C to 50°C (hazardous environment)
-20°C to +55°C (hazardous environment, T3 gas only)

Storage temperature range
-40 °C to +85 °C

ESD
IEC 61000-4-2 (level 4)
±8 kV (contact discharge) ±15 kV (air discharge)

Protection against dust and moisture
IP67 (non-explosion-proof)

Shock and vibration resistance
MIL-STD-810 C/D/E/F/G

Relative humidity
MIL-STD-810 C/D/E/F/G

ATEX explosion protection
ATEX:
I M1 Ex ia I
II 1 G Ex ia IIC T3
II 1 D Ex ia IIIC T160°C
II 2 G Ex ib IIC T4
II 2 D Ex ib IIIC T120°C

IECEx:
Ex ia I Ma
Ex ia I Mb
Ex ia IIC T3 Ga
Ex ia IIIC T160°C Da
Ex ib IIC T4 Gb
Ex ib IIIC T120°C Db

FM/CSA:
Class I, Division 1, Groups A,B,C,D T3B
Class I,II, III, Division 1, Groups A,B,C,D,E,F,G T3 C
Class I, Division 2, Groups A,B,C,D T4
Class II,III Division 2, Groups E,F,G T4A
Class I, Zone 0, AEx ia IIC T3
Class II, Zone 0, AEx ia IIIC T160°C
Class I, Zone 1, AEx ib IIC T4
Class II, Zone 1, Ex ib IIIC T120°C
