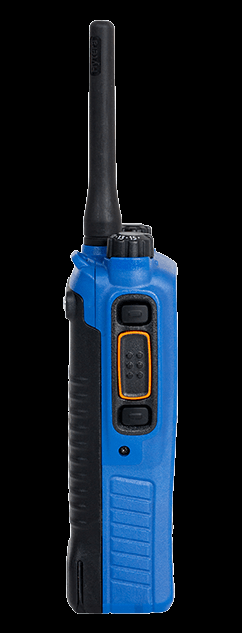

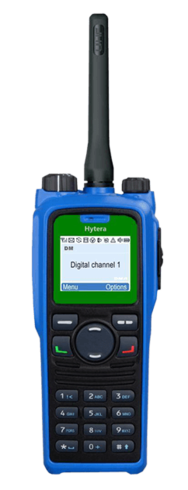

PD795IS ATEX DMR Portable Radio

Full-button DMR handheld radio with highest ATEX security class for safe communication

Maximum safety
All radios used in potentially explosive environments must comply with the European Union's ATEX directives. The PD795IS fulfills the ATEX directives with the highest protection level of "ia":

• ATEX Gas Protection: II 1 G Ex ia IIC T3
• ATEX Dust Protection: II 1D Ex ia IIIC T160 °C IP5X
• ATEX Protection for Mining Application: I M1 Ex ia

Robust and reliable
The PD795IS handheld radio has been developed for use in tough working environments. Besides meeting the requirements of the European ATEX and IEC Directives, as well as the North-American FM standard, the radio is also compliant with the MIL-STD-810C/D/E/F/G standard and is dust and water-resistant to protection class IP67.

Upgradeable firmware
Having upgradeable firmware makes it possible to enhance the system with new features. Changing the firmware-software enables other digital and analog operating modes to be integrated without having to purchase a new radio.

Failsafe design and battery latch

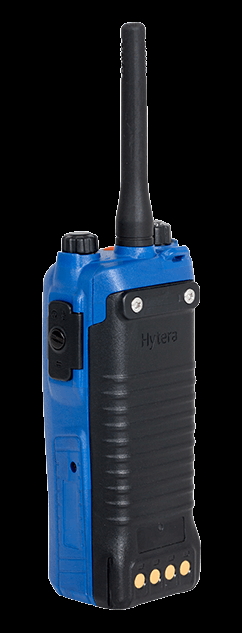

The PD795IS is protected from misuse by its physical design. Using batteries or accessory components with an insufficient level of protection automatically triggers an alarm. The patented latch on the battery ensures that the battery cannot fall out should the radio be dropped.

Innovative plastic encapsulation
Both the radio itself and the battery are encapsulated in plastic. This prevents any liquid, dust or harmful gas from entering and coming into contact with the internal circuits.

Integrated GPS as standard
With the aid of the integrated GPS module the PD795IS can send position information to dispatcher systems, for example. Dispatchers can evaluate this information and use functions such as geofencing, radio localization and GPS tracking.

High-strength LCD protective cover
The high-strength LCD protective cover is extremely scratch-resistant and would even withstand being struck by a 1-kg hammer.

• Supports various different operating modes, choice of analog or digital mobile radio (DMR), as well as MPT, XPT and DMR trunked radio
• Versatile voice calls: Individual call, group call, broadcast call, emergency call
• Safety functions for the user, such as lone worker function/dead man's alarm
• Data services (text messages, group text messages, control of the radio via an API)
• Various analog dialing methods (HDC1200, DTMF, 2-tone and 5-tone dialing, squelch procedure / CTCSS/CDCSS tone call)
• Supplementary services, radio check, remote monitor, call alert, radio disable/enable
• Menu available in different languages
• One-touch functions (incl. text messages, voice calls and supplementary services)
• Scanning
• Automatic cell re-selection (roaming) in IP multi-site systems
• Secure encryption with the ARC4 (40 bit) encryption algorithm in accordance with DMRA or with optional AES128 and AES256 (128 and 256 bit) algorithms
• Over the Air Encryption: Encryption of the signaling protects against unauthorized access to the repeater and interception of the connection data using a DMR scanner

Dimensions (H×W×D, without antenna)
141 x 55 x 39 mm

Weight (with antenna and standard battery)
495 g

Display
160 x 128 pixels, 65536 colours, 1,8 inches, 6rows

Operating temperature range
-30 °C to +60 °C (safe environment)
-20°C to 50°C (hazardous environment)
-20°C to +55°C (hazardous environment, only Gas T3)

Storage temperature range
-40 °C to +85 °C

ESD
IEC 61000-4-2 (level 4)
±8 kV (contact discharge) ±15 kV (air discharge)

Protection against dust and moisture
IP67 (non-explosion-proof)

Shock and vibration resistance
MIL-STD-810 C/D/E/F/G

Relative humidity
MIL-STD-810 C/D/E/F/G

ATEX
I M1 Ex ia I
II 1 G Ex ia IIC T3
II 1 D Ex ia IIIC T160°C
II 2 G Ex ib IIC T4
II 2 D Ex ib IIIC T120°C

IECEx:
Ex ia I Ma
Ex ia I Mb
Ex ia IIC T3 Ga
Ex ia IIIC T160°C Da
Ex ib IIC T4 Gb
Ex ib IIIC T120°C Db

FM/CSA:
Class I, Division 1, Groups A,B,C,D T3B
Class I,II, III, Division 1, Groups A,B,C,D,E,F,G T3 C
Class I, Division 2, Groups A,B,C,D T4
Class II,III Division 2, Groups E,F,G T4A
Class I, Zone 0, AEx ia IIC T3
Class II, Zone 0, AEx ia IIIC T160°C
Class I, Zone 1, AEx ib IIC T4
Class II, Zone 1, Ex ib IIIC T120°C
