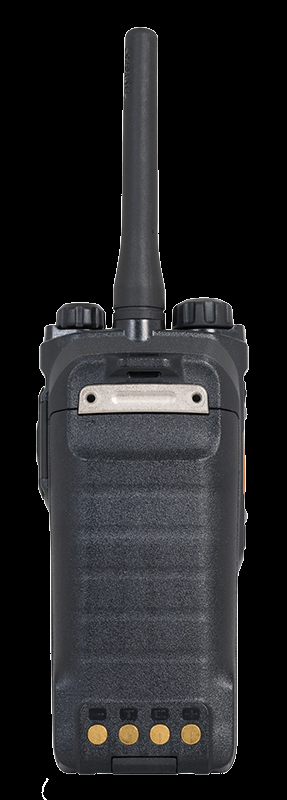

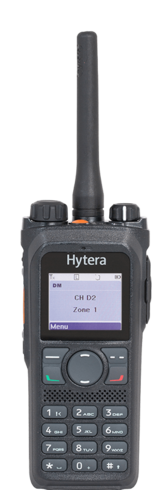

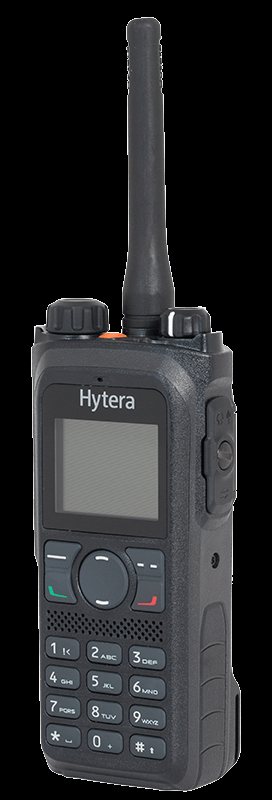

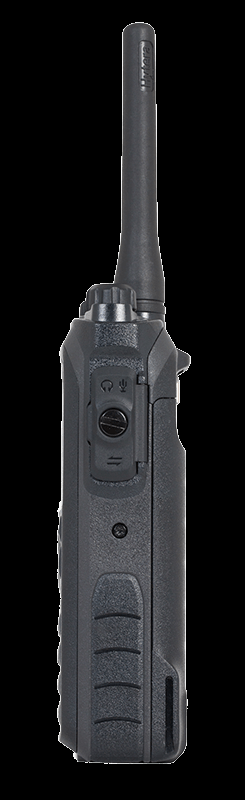

PD985 DMR Portable Radio

The new flagship model in the Hytera DMR series

MicroSD card
The PD985 has a MicroSD card slot, which can be used to save both radio communications and local audio signals from the surroundings. The card slot is located safetly in battery compartment behind the battery.
The data dsved is handled using the DMR Recording Manager.
MicroSD cards with a storage capacity of up to 32 gigabytes can be used, onto which up to 576 hours of voice communication can be recorded.

Single-frequency repeater (SFR)
In repeater mode (SFR), the PD985 efficiently increases the range of other radios. The SFR enabled radio receives services on one slot and forwards them on the other.
SFR enables the range of a direct link between conventional DMR devices to be extended without having to use a base station or a repeater. This gives users in the field greater freedom of movement.

Bluetooth® 4.0
Thanks to integrated Bluetooth® 4.0, the PD985 is ready for wireless audio accessories. It also supports simple data exchange and easy programming via Bluetooth®.
The Bluetooth® Audio Switch allows you to switch between the handset in the Bluetooth set and the loudspeaker in the radio at the touch of a button.

Full-duplex calls in telephone networks
With the PD985, full-duplex calls to other PD985 radios, landlines and mobile phones are possible during which both parties can talk and listen at the same time.

Real-time clock
The integrated real-time clock makes it possible for the users to check the exact time messages and calls were received.

Smart battery function
The PD985 supports the new smart battery function, making the device easier to use and increasing its battery service life. Thanks to the intelligent charger, the condition of the battery, such as its state of charge, battery life and remaining charging time, can be monitored and controlled. The smart battery function also considerably reduces the amount of time the battery takes to charge.

Degree of protection IP68
The protection against dust and moisture according to IP68 safeguards the radio also in harsh ambient conditions and equips the PD985 for every use.

Higher sensitivity and frequency stability
Compared to the PD785, the PD985 has significantly improved performance. Its further developed technology increases both the range and the reliability.

Improved voice quality
The speaker with a power rating of 3 watts and a new method for rejecting ambient noise ensures crystal-clear voice communication.

Over-the-air encryption
The over-the-air encryption function encrypts the signaling on the air interface. All subscribers need the relevant access rights to take part in the radio communication. This means that call setup is encrypted, the system is protected against unauthorized access and connection data cannot be tapped.

Basic functions

• Full keypad o Color display
• Text messages o Pre-programmed text messages
• Cell re-selection (roaming)
• Scan
• Channel announcement
• Bluetooth® 4.0 (audio) (optional)
• Bluetooth® 4.0 (data)* (optional)
• Integrated GPS (optional)
• Option board for self-developed extra functions (optional)

Special functions
Telemetry o Rental function o Phone interconnect
Full-duplex call (DMR Tier II)*
Full-duplex call (DMR Tier III)*
Full-duplex call also possible via repeater and per telephony
Single-frequency repeater* (optional)
Micro SD card* (optional)
Smart battery function* (optional)
Real-time clock

Supported operating modes

• DMR Tier II (conventional DMR)
• according to ETSI TS 102 361-1/2/3
• Simulcast
• XPT Digital Trunking
• DMR Tier III (DMR Trunking) (optional)
• according to ETSI TS 102 361-1/2/3/4
• Conventional analog radio
• MPT 1327 (analog trunked radio) (optional)

Security

• Emergency alarm
• Dedicated emergency button
• Alarmcall
• Man Down alarm
• Lone worker function
• Out of range alarm
• Advanced encryption (40 Bit)
• Advanced encryption (128 / 256 Bit) (optional)
• Multiple-key encryption (optional)
• Priority Interrupt
• Remote Monitor
• Vibration alarm
• Enable/disable terminal
• GPS text messages (optional)
• GPS position check (optional)
• Storage of GPS data (optional)

Audio functions

• Automatic Gain Control (AGC)
• Digital rejection of acoustic feedback
• Multi-band equalizer*
• Dynamic reduction of ambient noise

Dimensions (H × W × T, without antenna)
131 × 54.5 × 36 mm

Weight (with antenna and standard battery)
approx. 350 g

LCD display
160 × 128 pixel, 65,536 colors, 1.8 inch, 6 rows
