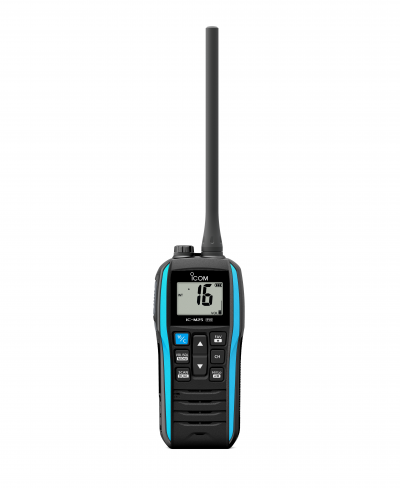

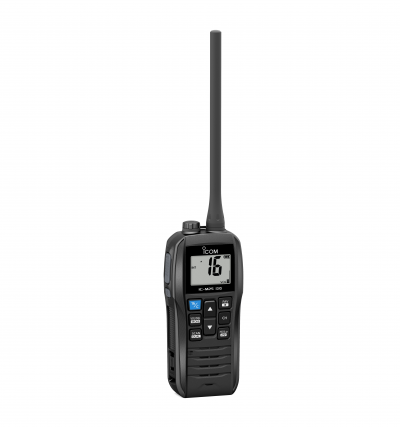

IC-M25EURO EVO Marine Handheld Transceiver

Buoyant VHF Radio with a Fresh Design for Marine Adventures

Evolution of the Popular Marine Radio

The IC-M25EURO EVO is an upgraded model of the extremely popular IC-M25EURO floating VHF marine handheld transceiver.

The IC-M25EURO EVO is designed with an improved grip texture for easier handling, and larger buttons for easier operation. Moreover, it has adopted a new power-saving Eco Mode which will allow approximately about 14 hours of operation, which is about a 30% improvement.

Furthermore, a USB Type-C™ charging port is standard. The IC-M25EURO EVO still retains its compact and lightweight body, and industry leading Float’n Flash™ and submersible design.

IPX7

Features

Float’n Flash™
If the IC-M25EURO EVO is accidentally dropped into water, it floats, flashes, and emits an alarm, reducing the risk of loss during water activities.

Enhanced Practical Design
The IC-M25EURO EVO is built for practicality, featuring an improved side grip texture for a secure, anti-slip hold even with wet hands

Large, user-friendly buttons ensure easy
operation for channel navigation and many other functions.

Lightweight and Compact Body
Weighing just 228 g and with a slim body depth of 31.2 mm, the IC-M25EURO EVO is lightweight and easy to carry for extended periods. Its compact body allows for seamless one-handed operation during activities.

14 Hours Operation in the Eco Mode
The IC-M25EURO EVO offers up to 14 hours* of extended operation with its power-saving Eco Mode. By reducing transmit power to 2.5 W, the operating time increases by approximately 30% compared to the standard 5 W output. This long battery life makes it ideal for your adventures.
* Typical operation with Tx (Mid): Rx: Standby=5:5:90

USB Type-C™ Charging Port
Adopting a USB Type-C™ port, which is commonly used worldwide, it charges the battery pack in approximately three hours. Additionally, charging with portable batteries* (user supplied), provides added convenience and mobility.
* USB PD is not supported.

AquaQuake™
The AquaQuake™ draining function prevents audio degradation from a water-logged speaker. This function removes water from the speaker grill by vibrating the speaker cone. Even if you get splashed by rain or waves, you can quickly restore the clear audio with AquaQuake™.

Loud and Clear Audio
With a powerful 700 mW audio output, the IC-M25EURO EVO delivers loud and clear sound, ensuring reliable communication even in noisy environments with engine noise or wind interference.

Other Features

  • IPX7 waterproof construction (1 m depth of water for 30 minutes)
  • 4-step battery life indicator
  • 2-step power save function
  • Dual/Tri-watch functions*
  • Instant access to CH 16 or programmable call channel
  • Favorite channel function
  • Monitor function opens noise squelch
  • Auto scan function

 *Not available in the NLD version

Performance characteristics

Frequency range Tx / Rx
156.000 ~ 161.450 MHz / 156.000 ~ 163.425 MHz

Usable channel groups
INT, USA*, ATIS* channels
* Depending on version

Type of emission 16K0G3E (FM)

Power supply voltage 3.7 V DC nominal

Current drain (at 3.7 V DC)
Tx (5 W) - 2.3 A
Rx (Max. audio) - 400 mA (INT SP)/230 mA (EXT SP)

Operating temperature range –15°C ~ +55°C

Antenna impedance 50 Ω

Dimensions (W × H × D)
(projections not included)
56.5 × 134.0 × 31.2 mm

Weight (approximate)
228 g
(With antenna and MB-133)

Ingress Protection Standard
IPX7 (Waterproof protection)

Transmitter

Output power
Aproximate 5 W/2.5 W/1 W

Max. frequency deviation ±5.0 kHz

Frequency stability ±1.5 kHz

Spurious emissions
Less than 0.25  W

Adjacent channel power
More than 70dB

Residual modulation
More than 40dB

Receiver

Sensitivity –6 dBμ emf typ. (at 20 dB SINAD)

Squelch sensitivity –6 dBμ emf typ. (at threshold)

Adjacent channel selectivity
More than 70dB

Spurious response
More than 70dB

Intermodulation
More than 68dB

Audio output power
(at 10% distortion)
Internal SP 700 mW typ. (8 Ω load, at 1 kHz)
External SP 200 mW (4 Ω load)

Filter
