Rapid Deployment Tunable Dipole Antenna
For HF radio manpack and temporary base station deployment

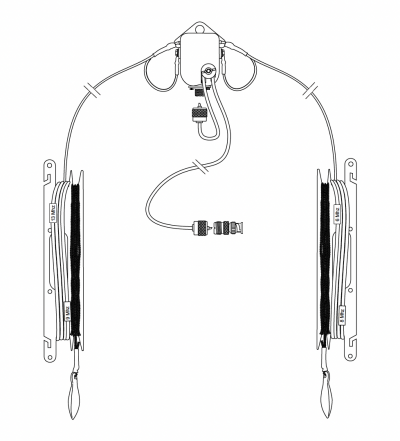

Rapid deployment tunable dipole antenna
Operates at 2 to 30 MHz, power of up to 150W PEP. Frequency markers attached to Kevlar radiators.
The Rapid Deployment Tuned Dipole Antenna frequency labels to indicate Wire has tuned lengths. For operation, each side of the antenna is unwound to the tuned length for the frequency required.
This antenna is most suitable for HF radio manpack and temporary base station deployment.
Specifications
Electrical:
- Frequency Range: 2 - 30 z MH
- Input Impedance: 50 ohms
- Power Rating: 150 W PEP
- Connector: UHF female with BNC adaptor
- Polarisation: Horizontal
- Radiation Pattern: Essentially Omni-Directional (when mounted as an inverted-V)
Mechanical:
- Material: Kevlar core, copper braid, pvc sheath, UV Stablized Re-inforced Nylon housings
- Length: 48m
- Weight: 1.2kg
- Packed size: 37cm x 18cm x 5cm
- Colour: Radiating wire elements - NATO green, Balun housing - black
Enviromental:
- Wind: 160 km / hour survival, 120 km / hour operational
- Temperature: -40° C to +70° C operational
- -40° C to +85° C storage
- Humidity: 0% to 97% relative humidity
- Ingress Protection: To 67 (dust and water)
