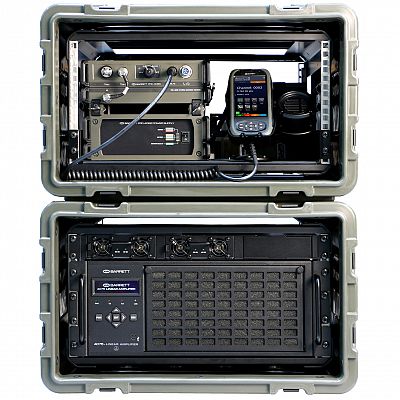

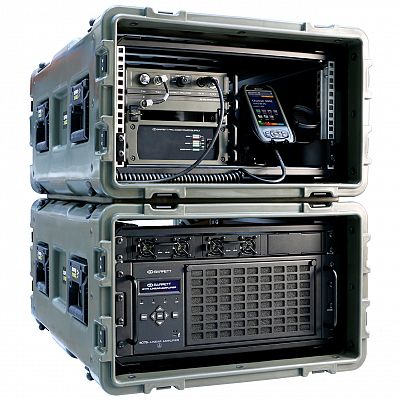

Barrett PRC-4075 Tactical 500 Watt HF Transmitter
The Barrett 500W tactical HF transmitter is a compact, easy to deploy communications solution developed for tactical base station applications.
The transmitter comes as a complete package with our PRC-4090 exciter, power supply, 4075 linear amplifier and interconnecting cables all pre connected in a rugged 19” 5RU rack mount case.
A compact, easily deployed communications solution developed for tactical base station applications.
- PRC-4090 exciter
- Power supply
- 4075 linear amplifier
- Interconnecting cables
- Rugged 19-inch 5RU rack case
Features

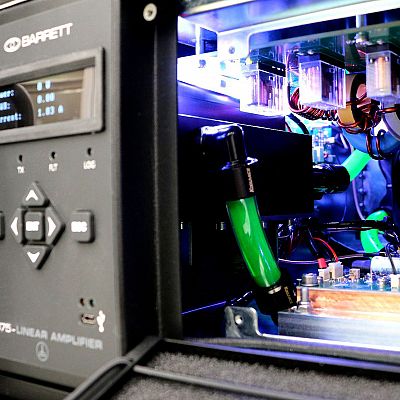

- Liquid-cooled linear amplifier
- 1.5 - 30 MHz continuous coverage
- 500 W continuous duty cycle
- 2G and 3G Automatic Link Establishment (ALE)
- Digital Voice and Digital Secure Voice
- Rugged 5RU rack-mount case
- IP connectivity
- Wireless operation via iOS, Android & Windows devices
General Specifications
Frequency coverage: 1. MHz to 30MHz 5 (reduced performance below 1.6MHz)
Frequency stability: ± 0.5 PPM -30°C to +70°C (±0.1 PPM available optionally) (PRC-4090 Transceiver/Exciter)
Channel capacity: 1000 with PRC-4090 HF Transceiver
Modes: J3E (USB, LSB) - H2B (AM) - J2A (CW) -(CF (Custom Filter) - ISB (data option)
Power output: 500W PEP
Duty cycle: 100%, Continuous PEP, CW
Exciter: PRC-4090 HF SDR transceiver
External Dimensions: Each 5RU case 900 x 570 x H 374 mm including lids
