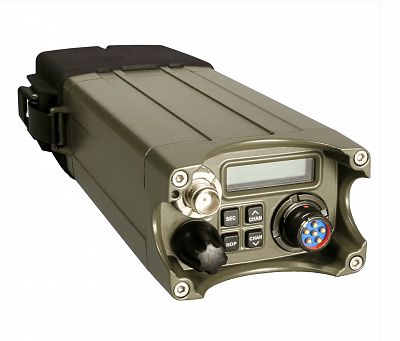

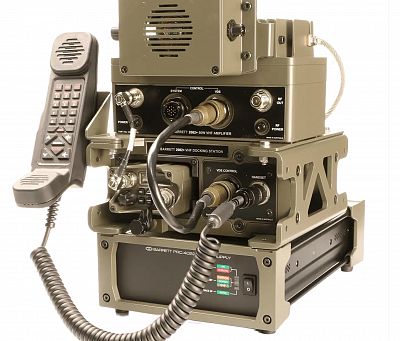

Barrett PRC-2080+ Tactical VHF Radio System Designed for tactical military and paramilitary operations
The PRC-2080+ low band VHF transceiver is designed for multi-role tactical military and security applications. It is an extremely compact and lightweight unit which is simple to operate in demanding mission critical conditions. The PRC-2080+ is part of the family of Barrett transceivers that are field proven in over 150 countries, on every continent and in all environments.
The PRC-2080+ is compact, lightweight and simple to operate in demanding mission-critical conditions.
- Simple to use
- Rugged design
- Modular construction
- Multiple encryption options
- Frequency-hopping options
Configurations to support your mission
The PRC-2080+ system can be configured in a variety of ways, from backpack-portable to vehicle-mounted and fixed installations.
... see below
Features
- Compact lightweight modular design
- Configurations include:-

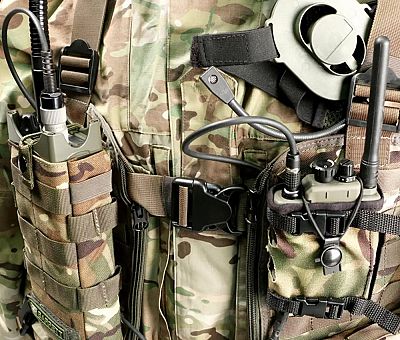

- 5 W Hand Portable

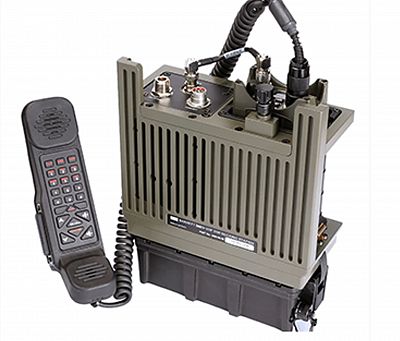

- 25 W Manpack
- 50 W Mobile
- 50 W Base Station

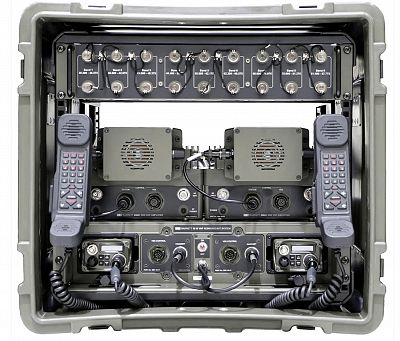

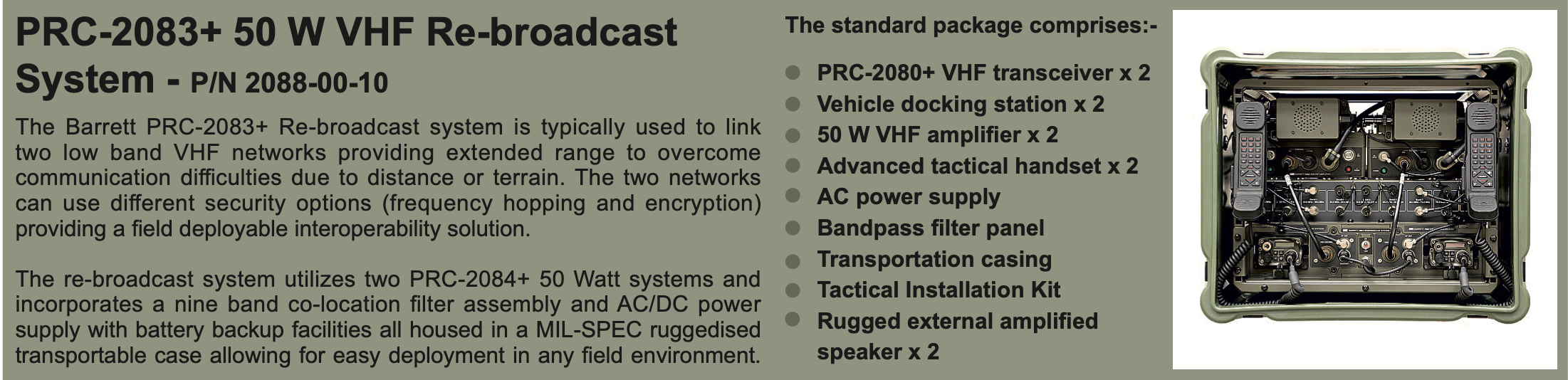

- 50 W Re-broadcast system
- DSP voice and data signal processing
- Selective and group calling
- Compatible with other 30 – 88 MHz communications equipment
Available options include:
- Encryption and frequency hopping security
- Messaging and encrypted data transfer
General specifications
Frequency range 30.2 MHz to 87.775 MHz
Channel resolution 25 kHz
Channels 2304, 10 pre-programmable
Squelch 150 Hz tone squelch
Display Backlit LCD graphics display
Programming PC programming software, Fill Gun, Cloning cable, Tactical handset
BITE Advanced module diagnostics & error reporting
Output power 5 W / 500 mW / 50 mW nominal (selectable)
Modulation FM (F3E) Digital

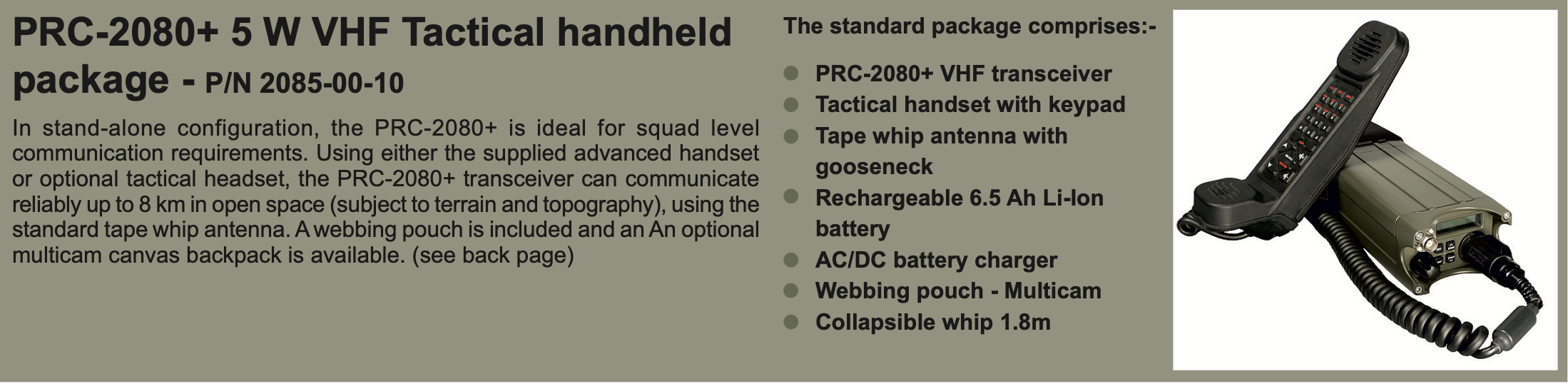

PRC-2080+ 5W VHF

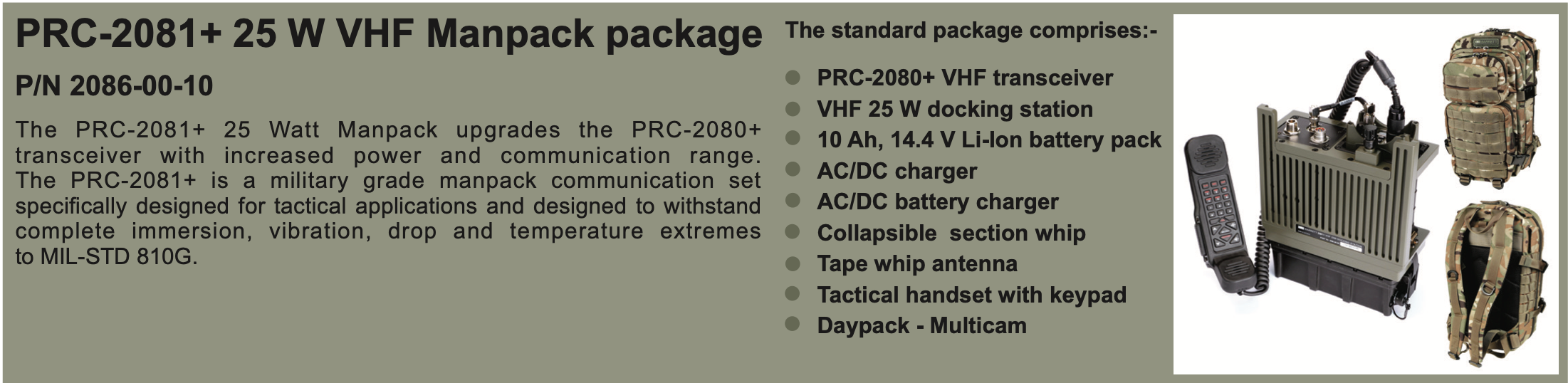

PRC-2080+ 25W VHF
PRC-2080+ 50W VHF

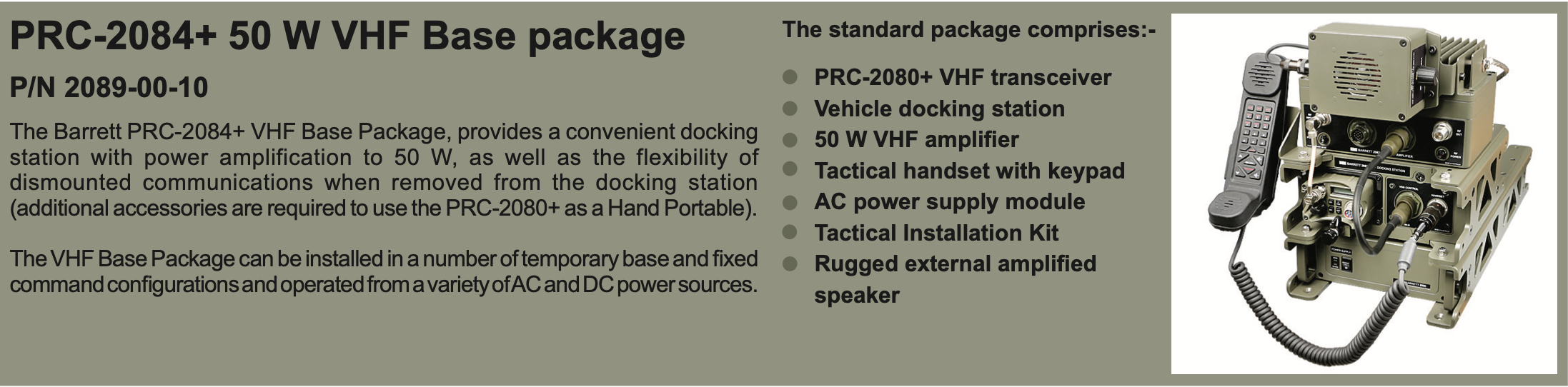

PRC-2080+ 50W VHF Base pack

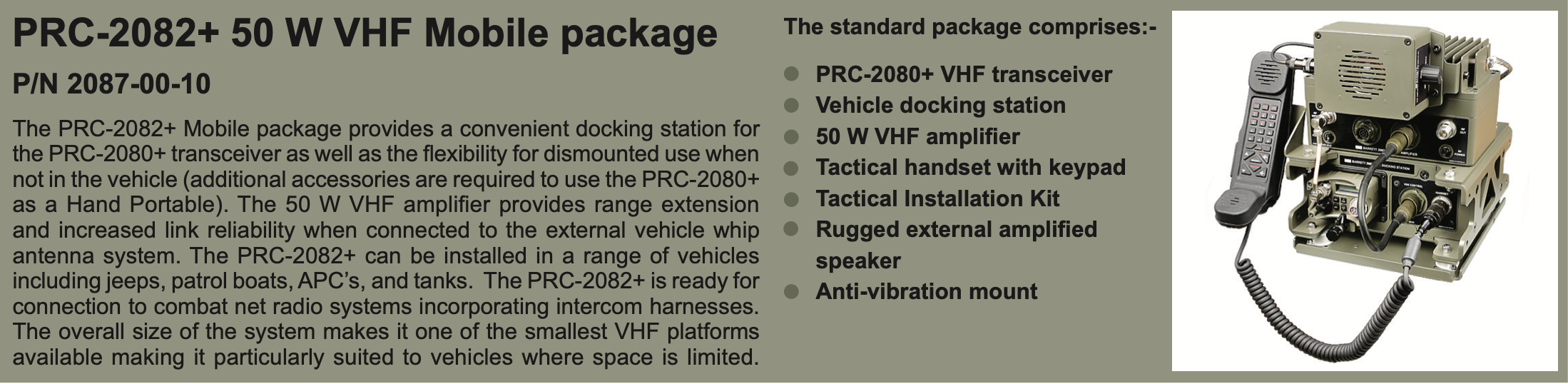

PRC-2080+ 50W VHF Mobile pack
