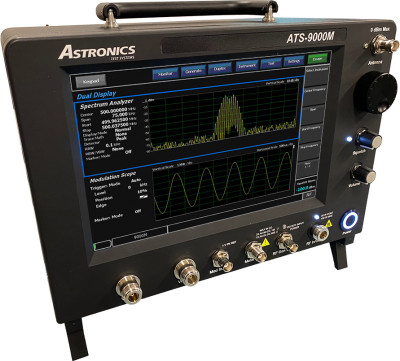

ATS-9000M Communications System Analyzer

The most powerful, versatile service monitor

Communications System Analyzers from Astronics provide all of the necessary tools to test and troubleshoot Land Mobile Radios in one, portable instrument.

The ATS-9000M from Astronics Test Systems is the latest innovation in Land Mobile Radio testing, setting a new standard for performance and convenience.

Featuring a vibrant 10.1” touch-screen display, this intuitive LMR test instrument is powered by advanced processors, enhanced RF components, and a responsive, updated OS. The ATS- 9000M includes a Two-Port and One-Path Vector Network Analyzer (VNA) for precise RF network measurements like Cable Loss and Insertion Loss.

With support for all protocols, it also features improved Spectrum Analyzer, FM, and P25 performance.

Its lightweight design makes it easy to carry, providing all the essential tools for both field and bench radio servicing in one portable device.

OPERATING DISPLAY MODES

  • AM/FM Duplex Monitor and Generator
  • Audio Synthesizer
  • Tracking Generator
  • Dual Display
  • Cable Fault Locator
  • Spectrum Analyzer
  • Frequency Counter
  • Frequency Error Meter
  • Digital Voltmeter
  • Power Meter
  • Oscilloscope
  • Signal Strength Meter
  • SINAD/Distortion Meter
  • Vector Network Analyzer (VNA)
  • Return Loss / VSWR vs Frequency
  • Distance to Fault (DTF)

General

Display Average Noise

  • Level (DANL): -140 dBm (50 Ohm input termination)
  • Dynamic Range: 80 dB
  • Input Related Spurious: -60 dBc max
  • Residual Spurious (non-input related): -70 dBm



Power

  • DC Power Requirements: 15-16 VDC @ 8.0 A max
  • AC Adapter Specs: 100-240 VAC, 2.5 A max, 50-60 Hz
  • Battery Power: Internal Battery
  • Battery Operation: 1.5 hour typical easily swappable for extended operation

Mechanical / Environmental

  • Weight: 15 lbs including internal battery (6.80 kg)
  • Dimension: 9.4” (23.9 cm) H, 12.7” (32.3 cm) W, 7.5” (19.1 cm) D
  • Operating Altitude: Up to 15,000 ft (4572 m)
  • Humidity: 95% maximum relative humidity
  • Operating Temperature: -20 º to 50 ºC (External DC); 0 º to 50 ºC (Using supplied AC adapter)
  • Storage Temperature: - Without battery: -30 º to +80 ºC; - With battery: -20 º to +50 ºC
  • Battery Charging Temperature: 0 º to +45 ºC
  • Shock and Vibration Rating: MIL-PRF- 28800F, Class 3

Warranty

Standard Warranty: Two years


Three Year Service Plan: Optional
Five Year Service Plan: Optional
