IP-3002 Radio Dispatch Console
IP CONSOLE 2 LINE
- User-friendly
- Simplifies management
- Bridges systems
- Direct radio wireline IP interface upgradeable
- Backwards Compatible

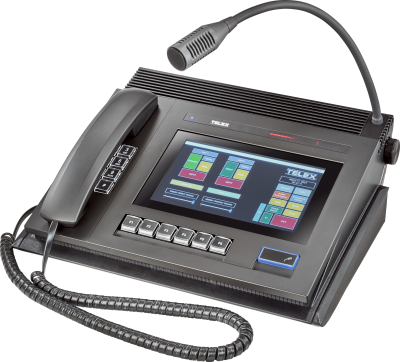

The IP-3002 two-line console is a part of the IP-3000 series of consoles that combine state-of-the-art hardware and software for the ultimate all-in-one UX (User Experience). The console features ergonomic comfort, fully customizable interfaces, backward-compatibility with existing Telex equipment (including the renowned IP-224 IP radio gateway), and easy to update software - all adding up to provide an optimal user experience while maximizing ROI (Return on Investment).
A superior hands-on user experience is ensured via a best-in-class feature lineup. Customers familiar with TSM (Telex System Manager) and C-Soft find configuring and using the console simple and efficient. With included features like a high-resolution TFT LCD touch screen display, high-quality speakers, USB ports, programmable keys and an output for an external monitor the console is quite capable. Optional features include an easy to install adjustable tilt stand, programmable keypad, and replaceable keys in a variety of colors.
SPECIFICATIONS
| Power supply | External 12V ±5% power supply Output Max: 12VDC @5A (60W) Input: 90 to 264VAC ~50/60Hz Level VI energy efficiency rating UL Certification |
| Active power | 16.5 W (24.0 W maximum) |
| Display size | 7.0 in |
| Display resolution | 800 x 480 |
| Touch screen | Yes - 5-wire resistive |
| Processor | Intel N3350 - 1.1 GHz |
| RAM | 8 GB |
| Hard drive | 64 GB SSD |
| USB audio codec | 1 |
| Speakers | Selected and Unselected (2 x 2 W) |
| Volume control knobs | 1 |
| Volume control keys | No |
| Goose-neck microphone | Yes Maximum input: 120 dB SPL |
| Illuminated PTT key | Yes |
| Bar-graph VU meter displays | Yes |
| Control keys | 0 |
| Programmable keys | 6 (labelled F1 to F6) Separate body and cover (allows for paper key legends) |
| Protection (sealing) grade | IP20 - Indoor use, limited amounts of falling dirt |
| External digital inputs | 0 |
| Footswitch interface | No |
| Handset with PTT | Integrated |
| Dimensions W x D x H (mm) | 332 x 278 x 113 |
| Unit weight | 3.4 kg |
| Operating temperature | 5° C to 35°C |
| Storage temperature | -10° C to 50° C |
| Humidity range | 20% to 80% (non-condensing) |
| Certifications and approvals | EN 55032:2012 EN-55024:2010 EN-61000-3-2:2014 EN-61000-3-3:2013 FCC Part 15 Canada's ICES-003 Issue 6 RoHS REACH N2580 |
