NX-1200AE3 Analogue Portable Radio (EU use)
VHF Analogue Portable Radio
Kenwood licensed analogue range of portables, mobiles, base stations and repeaters have been proven in the most extreme situations.
Features
| Multi-protocol radio - designed to operate under digital and FM analogue protocols |
| 64 Channels |
| 7-Colour Light Bar Indicator on the top panel |
| Internal VOX Function |
| Voice Annunciation |
| Built-In Voice Scrambler |
| QT / DQT, DTMF, 2-tone, 5-tone |
| 2-pin Audio Accessory Connector |
PMR General Features
| Multi-coloured LED | Yes |
| 2-Tone Signalling | Yes |
| 5-Tone Signalling (multi-format) | Yes |
| Battery Saver Mode | Yes |
| Busy Channel Lock-out | Yes |
| Calling Alert | Yes |
| Compact Design | Yes |
| Companded Audio | Yes |
| Data Mode Operation | Yes |
| Ease of Operating Use | Yes |
| Embedded Message | Yes |
| Emergency Call Function | Yes |
| Emergency Key | Yes |
| Emergency Advanced Motion Detection Function | No |
| Enhanced Kenwood Audio | Yes |
| FleetSync | Yes |
| Illuminated Keys | Yes |
| Internal VOX Ready | Yes |
| Kenwood ESN (Electronic Serial Number) | Yes |
| Key Beep On/Off | Yes |
| Key Lock | Yes |
| Lone Worker Function | Yes |
| Low Battery Warning | Yes |
| MDC-1200 | Yes |
| Minimum-Volume Setting | Yes |
| Monitor Button | Yes |
| Multiple Scanning Function | Yes |
| Operator Selectable Tone | Yes |
| PC Programming & Tuning | Yes |
| Programmable Function Keys | 2 Programmable Function Keys |
| PTT ID | Yes |
| QT (CTCSS) / DQT (digital) | Yes |
| Scan | Yes |
| Selectable Microphone Gain | Yes |
| Talk Around | Yes |
| "Talk Back" Scanning Function | Yes |
| Time-Out Timer | Yes |
| Voice Annunciation | Yes |
| Voice Guide Channel Confirmation | Yes |
| Voice Inversion Scrambler | Yes |
| Windows PC Programming and Tuning | Yes |
Options
| Choice of Optional Battery Packs | Yes |
| DMR Tier 2 Mode | Yes |
| NXDN Conventional Mode | Yes |
Applicable Standards
| RE Directive: EN300 086-2 | Yes |
| EN300 219-2 | Yes |
| EN301 489-5 | Yes |
| EU Safety: EN60215 | Yes |
| EU Safety: EN-62368-1 | Yes |
| For use in the EU | Yes |
| IP54 | Yes |
| IP55 | Yes |
| Measurement - EN Standards | Yes |
| MIL-STD 810 C/D/E/F/G | Yes |
Technical Specifications
| Frequency Range | 136 - 174 MHz |
| Number of Channels | 64 |
| Number of Zones | 4 |
| Channel Frequency Spread | 38 MHz |
| Channel Spacing - Analogue - Wide/Narrow | 25 kHz/12.5 kHz |
| Battery Life | With KNB-84L: ± 11.0 h With KNB-45L: ± 11.0 h With KNB-53N: ± 7.0 h With KNB-69L: ± 14.0 h - 5-5-90 - |
| Battery Voltage | 7.5 V DC ± 20% |
| Frequency Stability | ± 0.5 ppm (-30 °C to + 60 °C) |
| Operating Temperature Range | -30 °C to + 60 °C |
| Dimensions | With KNB-84L: 54.0 x 123.0 x 33.5 mm With KNB-45L: 54.0 x 123.0 x 33.5 mm With KNB-53N: 54.0 x 123.0 x 33.5 mm With KNB-69L: 54.0 x 123.0 x 37.5 mm Radio only: 54.0 x 123.0 x 33.5 mm - Projections not included - |
| Weight (net) | With KNB-84L : 295 g With KNB-45L : 295 g With KNB-53N : 365 g With KNB-69L : 310 g Radio only : 175 g |
Receiver Specifications
| Audio Output | 1 W (Internal) |
| Intermodulation | 70 dB |
| Selectivity (Analogue) | 25 kHz: 74 dB 12.5 kHz: 67 dB |
| Sensitivity - EIA 12 dB SINAD | 0.26 µV at 25 kHz 0.22 µV at 12.5 kHz |
| Sensitivity - EN 20 dB SINAD | 0.32 µV at 25 kHz 0.33 µV at 12.5 kHz |
| Spurious Reponse Rejection (Analogue) | 70 dB |
Transmiter Specifications
| RF Power Output | 5 W / 4 W / 2.5 W / 1 W |
| Audio Distortion | 2 % |
| FM Hum & Noise | Analog @ 25 kHz: 45 dB Analog @ 12.5 kHz: 40 dB |
| Spurious Emission | < 1 GHz ≤ -36 dBm, 1 GHz- 4 GHz ≤ -30 dBm |
Accessories
EMC-12W Audio Accessories
Clip microphone with earphone and PTT (VOX ready)
KHS-22 Headsets
Lightweight Headset with Boom Microphone & PTT
KMC-21 Microphones & Earphones
Slim-Line Speaker Microphone
KNB-53N Batteries
Ni-MH Battery - 1400 mAh
KRA-22 Antennas
VHF low profile helical antenna
KSC-35SCR Chargers
Battery charger pocket

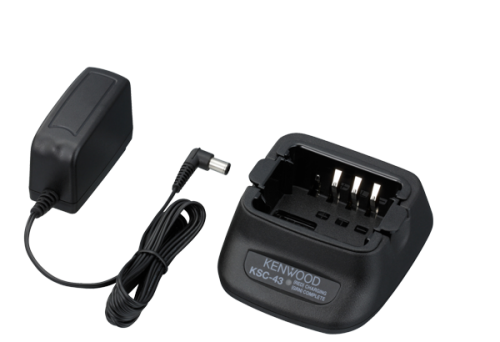

KSC-43 Chargers
Battery charger - single-way rapid
EMC-11W Audio Accessories
Clip microphone with earphone and PTT
KBH-10 Carry Accessories
Belt clip
KEP-2 Microphones & Earphones
Earphone kit
KHS-10D-OH Heavy Duty Headsets
Heavy Duty Noise Reduction Headset (over-the-head/2-pin)
KHS-35F Audio Accessories
Boom microphone with "D" earpiece and PTT
KHS-7A Headsets
Single Muff Headset with Boom Microphone & PTT
KHS-8BL Microphones & Earphones
Two-wire Palm Microphone with Earpiece
KHS-8NC Microphones & Earphones
Two-wire Palm Microphone (Noise Cancelling) with Earpiece
KHS-9BL Microphones & Earphones
Three-wire Lapel Microphone with Earpiece
KLH-131 Carry Accessories
Nylon case
KLH-187 Carry Accessories
Nylon Case
KMB-35A Chargers
Multi charger adapter (requires KSC-35SCR pockets)
KMC-45D Audio Accessories
Heavy duty Speaker/Microphone
KRA-26 Antennas
VHF helical antenna

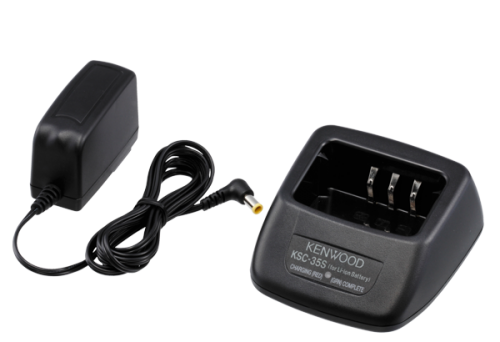

KSC-35S Chargers
Battery charger - single-way rapid
KVC-19 Chargers
Mobile Vehicle Charger 12 V (1 piece)
