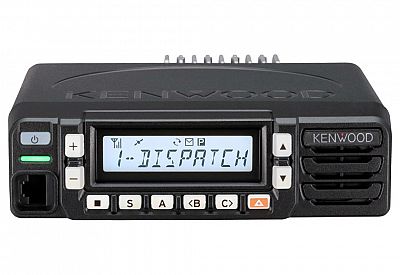

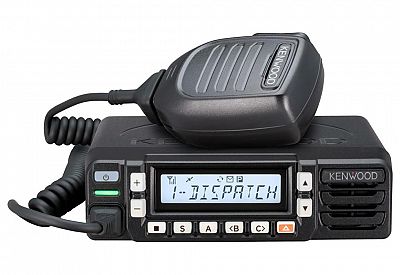

NX-1800AE Analogue Mobile Radios (EU Use)

"One Radio" with Multi-protocol Support: designed to operate under an NXDN or DMR digital CAI, and FM analog protocols.

How to buy Share this page Subscribe to newsletter

Upgradable Digital/Analog mode by software option (no firmware upgrade required)
Easy visible, white backlit LCD display: Alphanumeric, 10-digit, 13-character frame (aliases and icons)
7-color LED indicator used to display various radio status
Renowned KENWOOD Audio Quality: 6 W (max. ) loud audio and optimizable TX/RX audio profile: Audio Equalizer, Auto Gain Control (TX/RX) and Microphone type settings
Max. 260 channels per radio, 128 zones per radio, and 250 channels per zone
Various scan functions: Dual/Single Priority scan, Multi/Single Zone scan and more
Orange-colored Emergency button & Customizable Emergency functions

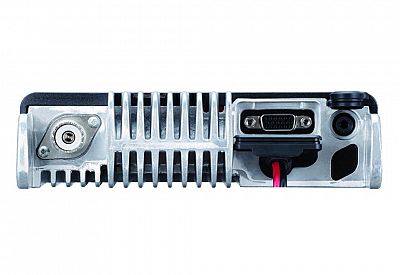

D-sub, 15-pin connector on the rear panel
IP54 and MIL-STD 810C/D/E/F/G/H

Multi-coloured LED	Yes, 7-colours - Yellow, Purple, Blue, Light Blue, Red, Green & White
5-Tone Signalling formats	Yes
Busy Channel Lock-out	Yes
Calling Alert	Yes
Compact Design	Yes
Companded Audio	Yes
DB-15 Accessory Connector	Yes; can also be programmed as 6 individual Accessory Ports
DTMF Function	Yes
Ease of Operating Use	Yes
Embedded Message	Yes
Emergency Call Function	Yes
Emergency Key	Yes
Enhanced Kenwood Audio	Yes
FleetSync	Yes
Front-mounted Loudspeaker	Yes
GPS Compatible	Yes
Horn Alert/PA Function	Yes
Independent Setting per Channel	Compander, Scrambler, Wide/Narrow Deviation & Hi/Lo Power
Kenwood ESN (Electronic Serial Number)	Yes
Key Lock	Yes
Lone Worker Function	Yes
MDC-1200	Yes
Minimum-Volume Setting	Yes
Monitor Button	Yes
Multiple Scanning Function	Yes
Operator Selectable Tone	Yes
Programmable Function Keys	6 Programmable Function Keys
PTT ID	Yes
QT (CTCSS) / DQT (digital)	Yes
Remote Stun and Revive	Yes
RSSI Level Indicator	Yes
SelCall Function	Yes
Selectable Microphone Gain	Yes
Switchable Display Backlighting	Yes
Talk Around	Yes
"Talk Back" Scanning Function	Yes
Time-Out Timer	Yes
Transceiver Password	Yes
Voice Inversion Scrambler	Yes
Voting Function	Yes
Windows PC Programming and Tuning	Yes
Wired Cloning Function	Yes

External-device Switching	Yes, External devices can be switched (via the AUX output) on receipt of a status ID code
Paging Call Function	Yes
PTT ID Digital ANI	Yes
Selective Calling	Yes
Send GPS Data	Yes, - from an optional NMEA-0183 GPS
Short/Long Text Messages	Yes
Status Messaging	Yes, Status messages are pre-programmed 2-digit codes from 10 - 99 (numbers 80 - 99 are reserved for special messages). Up to 15 messages can be stored in stack memory.

Adjacent Channel Selectivity	Wide/Mid/Narrow - 75/73/65 dB
Audio Output	6 W (max.) / 4 W (rated) at 4 Ohm
Intermodulation	65 dB
Sensitivity - EIA 12 dB SINAD	0.26 µV at 25 kHz 0.27 µV at 20 kHz 0.22 µV at 12.5 kHz
Sensitivity - EN 20 dB SINAD	0.32 µV at 25 kHz 0.33 µV at 20 kHz 0.33 µV at 12.5 kHz
Spurious & Image Rejection	75 dB

RE Directive	EN300 086, 300 113, 300 219, 301 489
EU Safety	EN60215, EN62368
Factory Quality Certification and Location	ISO 9001. Manufactured in Singapore
For use in the EU	Yes
IP54	Yes
MIL-STD 810 C/D/E/F/G/H	Yes

Frequency Range - E Type	400-470 MHz
Number of Channels	260
Number of Zones	128
Channel Spacing - Analogue - Wide/Mid/Narrow	25 kHz/20 kHz/12.5 kHz
Antenna Impedance - 50 Ohm	Yes
Current Drain	Standby: 0.45 A max. RX: 2.4 A max. TX: 10.0 A max.
Frequency Stability	± 0.5 ppm (-30 °C to + 60 °C)
Operating Temperature Range	-30 °C to + 60 °C
Operating Voltage	13.2 V DC ± 15%
Dimensions	160 x 43 x 137.7 mm (Projections not included)
Weight (net)	1.21 kg

RF Power Output (High/Low)	25 W / 5 W
FM Noise (EIA)	Wide/Mid/Narrow: 45/43/40 dB
Modulation Distortion (Wide/Mid/Narrow)	3%
Modulation Limiting	± 5.0 kHz at 25 kHz ± 4.0 kHz at 20 kHz ± 2.5 kHz at 12.5 kHz
Spurious Emission (EN)	< 1 GHz ≤ -36 dBm 1 GHz - 4 GHz ≤ -30 dBm
