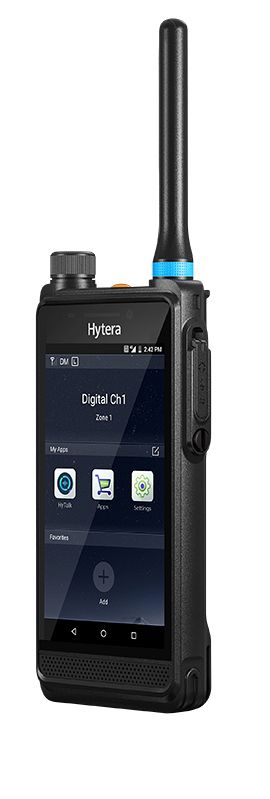

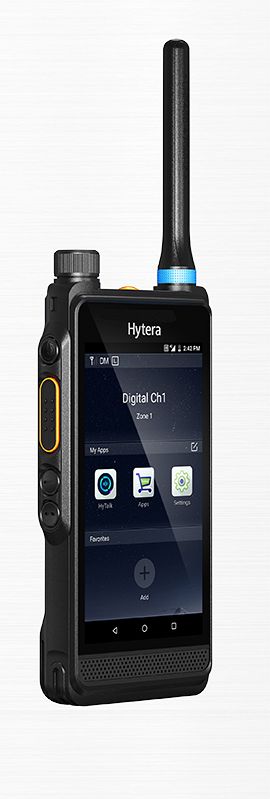

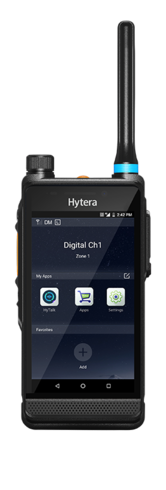

PDC550 DMR Portable Radio

Smart PoC radio

Broadband and narrowband convergence
PDC550 enables the collaboration of multiple communication modes including broadband and narrowband networks as well as public and private networks in multiple scenarios. Users can not only hear but also see everything clearly on their display. So they can calmly respond, control the situation, and make decisions in the shortest time.

Rugged and compact design
With its exquisite structural design, IP68, military standard (MIL-STS-81O G), 1.2m drop-proof design, PDC550 can handle harsh environment.

Open platform, endless opportunities
PDC550 provides high compatibility and security performance. Multiple applications can run on it. Open API allows third party developing customized applications such as OR code recognition, facial recognition and license plate recognition.

Clear audio quality
The dual microphone with noise cancellation and powerful speech recognition can effectively filter out background noise even from noisy environments. Thanks to the built-in 1W speaker (up to 2.5W), the PDC550 offers loud and clear audio quality for versatile use.

Effortless operation
The 5-inch HD touchscreen with Gorilla Glass is clearly visible even in strong light. The 375g lightweight device can also be used with gloves and thanks to IP68 it is comfortable in the rain. The handy design and the non-slip side surface ensure a user-friendly and smooth operation.

Memory
3 GB RAM + 32 GB ROM, expandable memory (maximum 128 GB)

Screen
5.0-inch HD touch screen, 1280 x 720 resolution

Cameras
Rear 13 mega-pixel camera
Front 5 mega-pixel camera

Card slots
2x Nano SIM card slot
1x Micro SD card slot

External interfaces
Hytera dedicated 13-pin interface
Charging interface for charger
Antenna interface (SMA interface, shared with Td5)

Key
1x PTT
2x programmable key
1x alarm key
1x power key

Flashlight
Available

Charging mode
Charging with charger, 2 A charging

Volume knob
Available (shared with the channel knob)

Operating voltage
7.6 V (rated)

Dimensions (H x W x D)
155 x 75 x 21.5 mm

Weight (with antenna & battery)
375 g (including battery, antenna, and back clip)

Protection against dust & moisture
IP68

Humidity
MIL-STD-810

Shock and vibration resistance
MIL-STD-810 G

ESD
EC 61000-4-2 (Level 4)
±8 kV (contact)
±12 kV (air)

Operating temperature range
-20 °C to +60 °C

Storage temperature range
-30 °C to +80 °C

Drop resistance
1.2 m
